The KSK-1A53 is high frequency reed switch with glass length of 20.5mm and diameter of 2.8mm. This high frequency reed switch has a rated power 10 W, Switching voltage 220 VDC, Switching current 1 Amp DC.

Medical equipment, test and measurement (ATE), high power, high voltage, RF

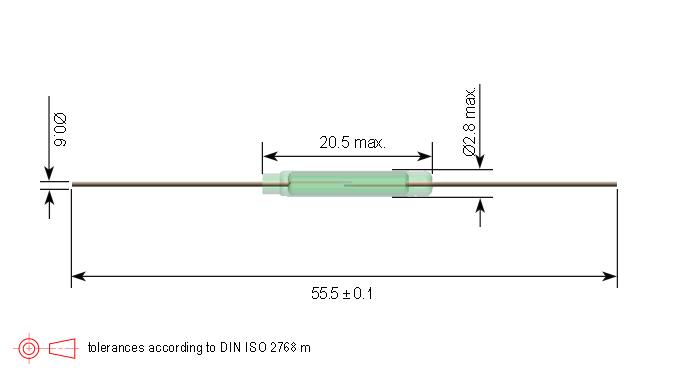

Overall Length mm (inches)	55.0 (2.165)
Glass Length Max. mm (inches)	20.5 (0.807)
Glass Dia. Max. mm (inches)	2.80 (0.110)
Lead Dia. mm (inches)	0.6 (0.023)
Contact Form	1A (SPST) Normally Open (N.O.)
Rated Power Max.	10W/220VDC/1 Amp DC
