Features



• Zinc alloy die cast chrome plated housing and cylinder
• 11 blade criss cross tumblers. Double bitted key.
• 2 kinds of terminals available.
• S203 Maintained contact screw terminal
• S203A Maintained contact spade terminal
• S203M Momentary contact screw terminal
• S203MA Momentary contact spade terminal



Specifications

Contact Rating	4A 125VAC, 2A 250VAC
Contact Resistance	10 Milli-Ωs Max
Insulation Resistance	500 Meg-Ωs Min (500 VDC)
1500 VAC - 1 Minute	Dielectric Strength

S-246 Single-pole Keylock

Features



• Zinc alloy die cast housing and cylinder
• 5-disk tumblers mechanism
• Reversible double cut key. Brass Made. Nickel plated.
• With dust shutter
• Silver plated terminals and contacts
• S246 2 positions (off-on). 2 terminals (off-on-type).
• Used for alarms, security systems, garage, etc.
• 150 combinations available



Specifications

Contact Rating	4A 125VAC, 2A 250VAC
10 Milli-Ohms Max	Contact Resistance
Insulation Resistance	500 Mrg-Ohms Min (500 VDC)
Dielectric Strength	1500 Vac – 1 Minute

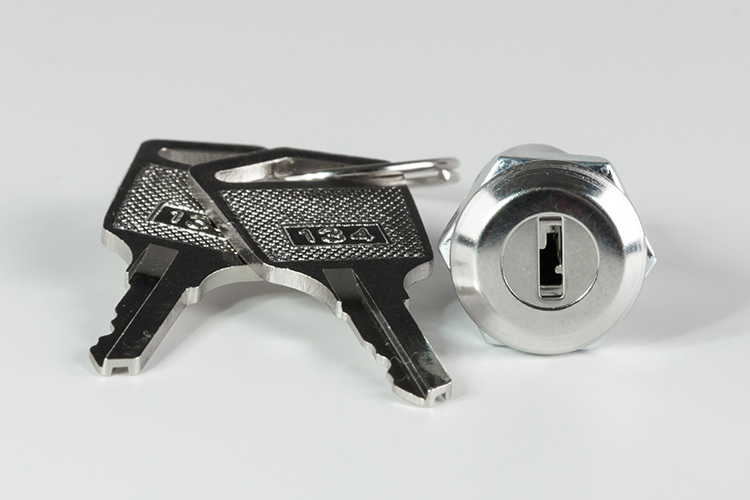

S-109 Single-pole Keylock

Features



• Zinc alloy die cast housing with bright stainless steal bezel
• Brass keys. Nickel plated.
• Silver plated contacts and terminals
• Two positions (on-off)
• S109B Key can be withdrawn at both “off” and “on” positions only.
• 20 combinations available



Specifications

Contact Rating	1A 125VAC, 0.5A 250VAC
Contact Resistance	10 Milli-Ohms Max
Insulation Resistance	200 Meg-Ohms Min (500 VDC)
Dielectric Strength	1000 VAC – 1 Minute

Downloads

Document	File Type	File Size	Download
S Series Datasheet	PDF	730 KB
