Reduces wiring work by 60% when combined with the PTF-08-PU Push-In Plus Socket (according to actual OMRON measurements).
UL/CSA certified (-US models).
Using a triac to open and close the circuit reduces chattering and arching, thereby increasing the electrical durability to 10 million operations.
Relays contacts for power ON and 10-A switching with highcapacity are provided in a compact body without the need of radiators. Plus, there is almost no effect on heat generation or ambient temperature
Operation indicators to easily check operation.
Built-in temperature fuse prevents internal burning due to triac or relay malfunctions.

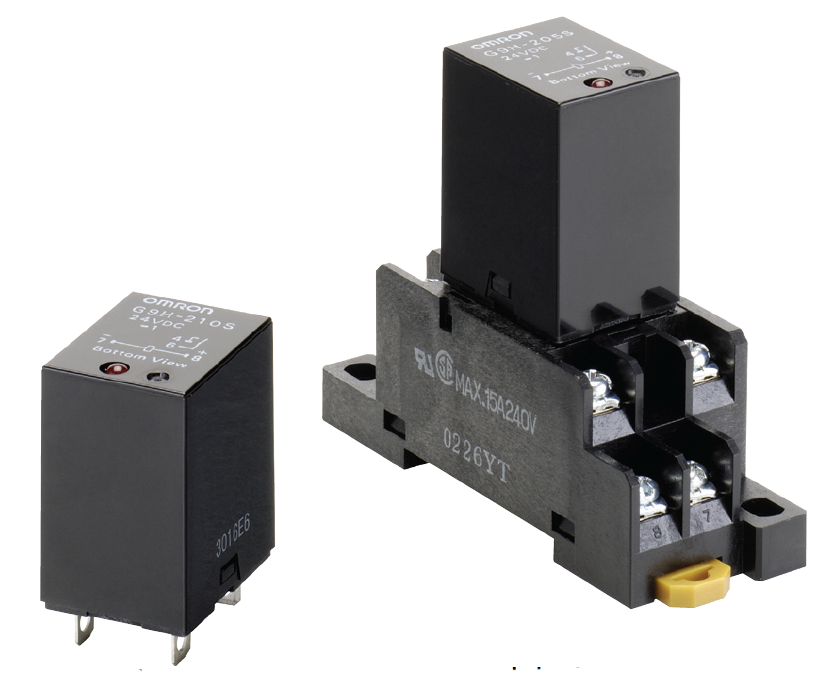

Socket-type Relays the same size as the 1-pole and 2-pole LY Relays.

Item		G9H-205S (-US)	G9H-210S (-US)
Operate time		10 ms max.
Release time		1/2 cycle max. + 10 ms
Output ON voltage drop		1.6 V max. (RMS) (at 5 A)	1.6 V max. (RMS) (at 10 A)
Leakage current		5 mA max. at 250 VAC
Inrush current resistance		80 A	170 A
Temperature rise		50°C max. (rated voltage applied using resistance method)
Insulation resistance		100 MΩ min. (at 500 VDC)
Dielectric strength		2,000 VAC 50/60 Hz 1 min
Vibration resistance	Destruction	10 to 55 to 10 Hz, 1-mm single amplitude (2-mm double amplitude)
Vibration resistance	Malfunction	10 to 55 to 10 Hz, 1-mm single amplitude (2-mm double amplitude)
Shock resistance (See note.)	Destruction	1000 m/s²
Shock resistance (See note.)	Malfunction	100 m/s²
Life expectancy	Mechanical	10 million operations min. (switching frequency: 18,000 operations/hour)
Life expectancy	Electrical	10 million operations min. (resistive load and switching frequency: 18,000 operations/hour)
Ambient temperature		Storage: -25 to 70°C (with no icing or condensation) Operating: -25 to 60°C (with no icing or condensation)
Ambient humidity		Operating: 45% to 85%
Weight		Approx. 25 g

Document	File Type	File Size	Download
G9H Series Datasheet	PDF	2.5 MB
