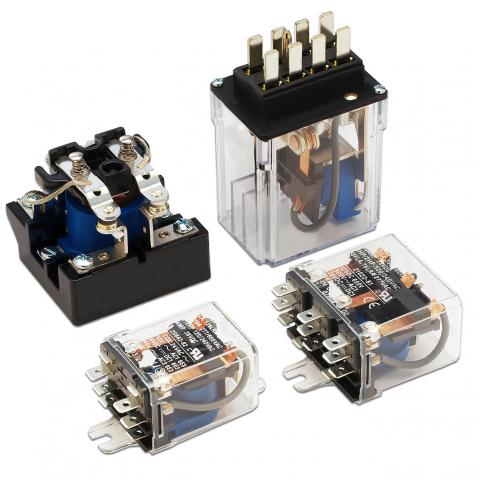

Power Relays are cost-effective 15-50 Amp switching devices used in a wide variety of applications.



Features



• Electrical loads of 15 to 50 Amps
• Contact configurations through 3PDT
• Low cost alternatives to small contactors
• Class F coil insulation system for 155°C total temperature
• Coils molded in Polyester for environmental protection
• Panel, PC terminal, 8 pin Jones plug mounting options



Typical Applications: Motor controls, lighting controls, surge protection, electric heat motor controls, HVAC, laundry equipment, welding equipment, traffic controller equipment, power supplies, control panels, spa controls



General Purpose Relays

Model	Cover	Max Amp	Pole Config	Terminals
295	Plain	20	DPDT	0.25x.055
375	Flange, Top Mount	30	Thru 3PDT	0.25 QC
900	Open	50	Thru DPDT	QC/Screw Type
270	Open	35	Thru DPDT	0.25 QC
275	Flange, Plain, Top Mount, Stud	35	Thru DPDT	0.25 QC | pcb terms
