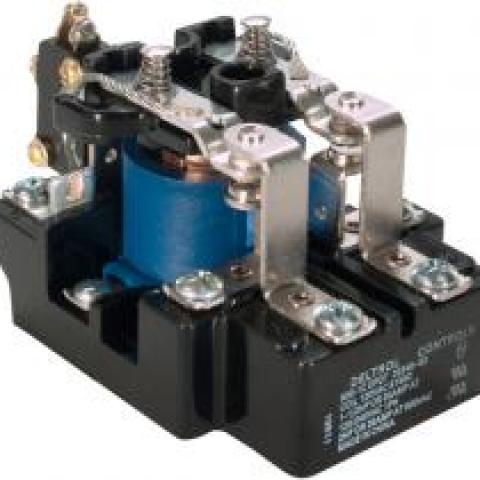

900 Series: 30 and 50 Amp heavy duty power relay



Features



• Up to 30-50 Amp loads (see data sheet)
• Class F coil insulation system for 155°C total temperature
• Coil molded in Polyester for environmental protection
• Rugged construction rivets terminals to base
• 900, 900D and 900E are UL and cUL listed
• 900-1C, 900Q and 900R are UL and cUR recognized



Models



• 900: Fast acting 30 Amp relay
• 900-1C: 900 with addition of SPDT auxiliary snap switch rated 10 Amp, 1/4 HP
• 900Q: Same as 900 with .250" QC termination
• 900D: Same as 900 with addition of blowout magnets for DC loads
• 900E: Same as 900 with 50 Amp rating and box lug termination
• 900R: Same as 900 with 50 Amp rating and standard screw terminals



Documents and Downloads

Document	File Type	File Size	Download
Datasheet	PDF	461 KB
