| Image | Series | CONTACT ARRANGEMENT | MAX. SWITCHING CURRENT | HEIGHT (MM) | TERMINAL TYPE | NOMINAL SWITCHING CAPACITY (RESISTIVE LOAD) | POWER CONSUMPTION |
 |

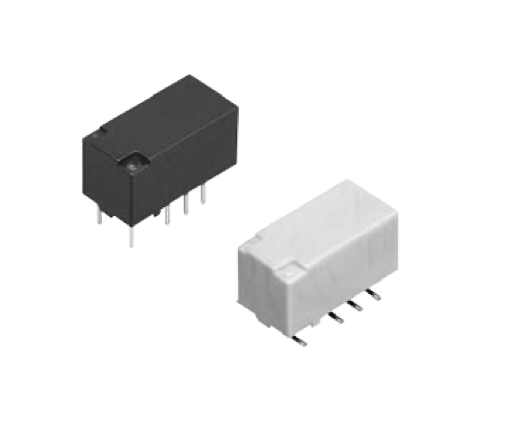

TX Series Relays | 2c | 2A | 8.2 to 8.4 | Standard PC board terminal, Surface-mount terminal, Self-clinching terminal | 1A, 30V DC, 2A, 30V DC | 140mW,200mW |
 |

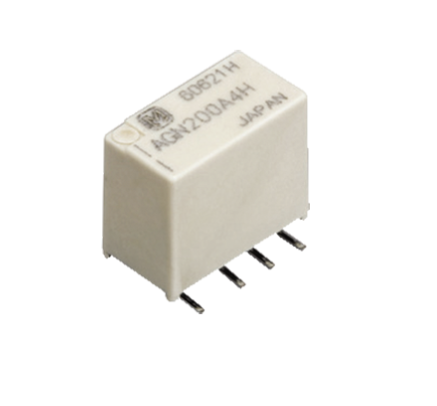

GN Series Relays | 2c | 1A | 9 to 10 | Standard PC board terminal, Surface-mount terminal | 1A 30V DC, 0.3A 125V AC | 100mW to 230mW |
 |

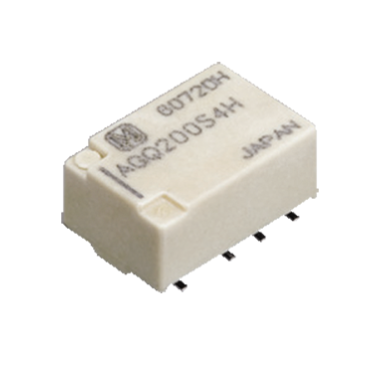

GQ Series Relays | 2c | 2A | 5.2 to 5.4 | Standard PC board terminal, Surface-mount terminal | 2A 30V DC, 0.3A 125V AC | 100mW to 230mW |
 |
DS Series Relays | 1c,2c | 2A | 9.9 | Standard PC board terminal | 2A 30V DC | 180mW to 400mW |
 |

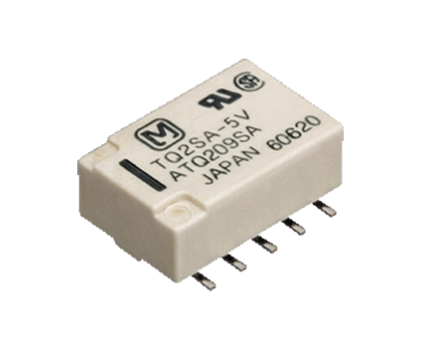

TQ Series Relays | 2c | 1A | 5 to 5.6 | Surface-mount terminal, Standard PC board terminal, Self-clinching terminal | 2 A 30 V DC, 0.5 A 125 V AC, 1 A 30 V DC, 0.5 A 125 V AC | 100mW to 300mW |
 |

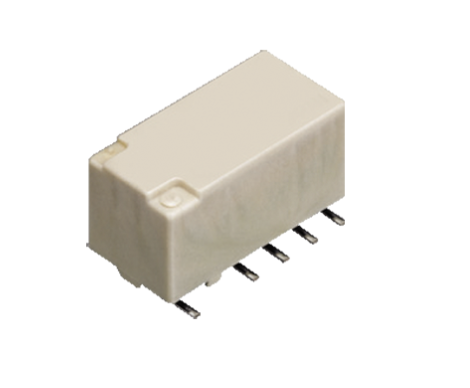

TX Series Relays TH Type | 2c | 2A | 8.2 to 8.4 | Standard PC board terminal, Surface-mount terminal, Self-clinching terminal | 2A 30V DC, 0.5A 125V AC | 100mW to 270mW |
 |

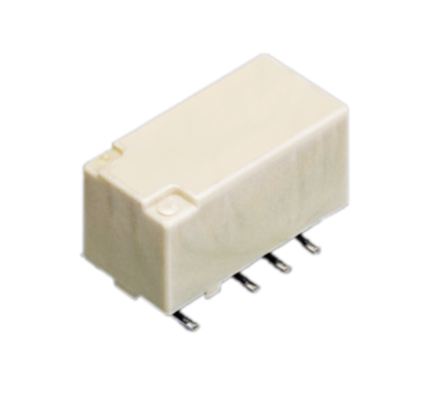

TX-S Series Relays | 2c | 1A | 8.2 to 8.4 | Standard PC board terminal, Surface-mount terminal | 1 A 30 V DC | 50mW to 170mW |
 |

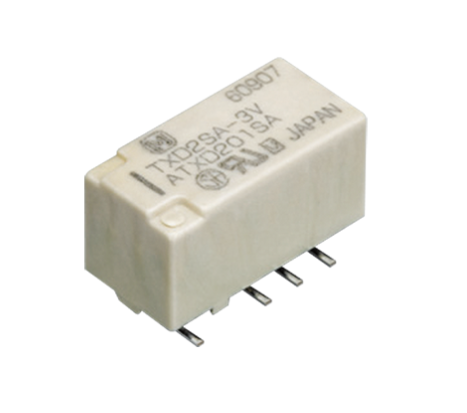

TX-D Series Relays | 2c | 2A | 8.2 to 8.4 | Standard PC board terminal, Surface-mount terminal, Self-clinching terminal | 1A 30 V DC, 2 A 30 V DC | 150mW to 270mW |
 |

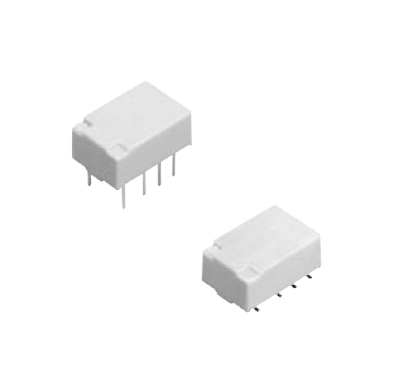

GQ Series Relays TH Type | 2c | 2A | 5.2 | Standard PC board terminal, Surface-mount terminal | 2 A 30 V DC, 1 A 30 V DC, 0.3 A 125 V AC | 100mW to 230mW |
 |
HY Series Relays | 1c | 1A | 10.1 | Standard PC board terminal | 1 A 30 V DC | 150mW,200mW |
 |

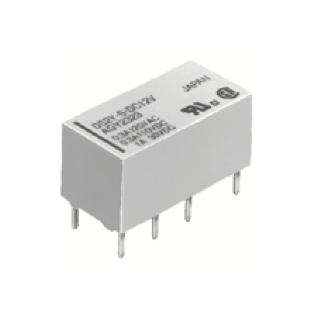

DS2Y Series Relays | 2c | 2A | 9.9 | Standard PC board terminal | N/A | 200mW,300mW |
 |
 |
 |
