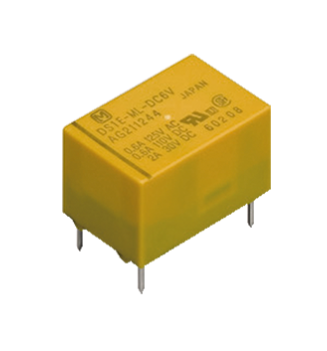

Panasonic DS Series Signal Relays offer a very reliable through-hole sealed signal relay that suits a wide variety of applications. Using a 1FormC (SPDT) contact arrangement, with Gold-clad twin contacts, offers high reliability. Highly stable gold cladding on the contacts ensures that contact resistance is very stable over time.
The use of twin contacts ensures extremely low contact failure rates even under low-level loads and minimizes contact bouncing. The input for the DS Series Signal Relay is available as either single-side stable or 2-coil latching. Polarized magnetic circuits allow for a more robust resistance to shock and vibration. Standard DC coil voltage options include 1.5V, 3V, 5V, 6V, 9V, 12V, 24V, and 48V.
The DS Series Relay product line has been partially Not Recommended For New Design for DS2 parts.
Features & Benefits
Applications
| Document | File Type | File Size | Download |
| DS Series Datasheet | 449 KB |  |
 |
 |
 |
