Time delay relays are parts that activate a multitude of appliances, machinery, and equipment. Some of the applications include: motor vehicles / furnace fans / conveyor belts / dispensing equipment/ warning systems. Timing relays have a built-in time-delay function. Triggered in various ways, time delay relays minimize the energy used to start large industrial machinery or can switch on and off light switches.

Model	Image	Function	Input Voltage	Contact configuration	Timing Range	Features	Package
B Series		Discontinued, no longer available. NOTE: Technical data sheets available for reference purposes only. SUGGESTED ALTERNATE: C SERIES
BR Series		Discontinued, no longer available. NOTE: Technical data sheets available for reference purposes only. SUGGESTED ALTERNATE: CR SERIES
C Series		Delay-on make / delay-on operate	12 24 110 48 115 AC/ DC	1 Form C; SPDT 1 Form A; normally open 1 Form B; normally closed	.1-60 secs 120-180 secs 180-240 secs 240-300 secs 6-120 secs	solid state analog hybrid	Miniature
C10 Series		Delay-on make / delay-on operate	12 24 110 120 48 AC/ DC	2 Form C; DPDT	.1-60 secs 120-180 secs 180-240 secs 240-300 secs 300-480 secs 6-120 secs	solid state analog hybrid	Octal style
CI Series		Interval on or one shot	12 24 110 120 48 AC/ DC	2 Form C; DPDT	.1-60 secs 120-180 secs 180-240 secs 240-300 secs 300-480 secs 60-120 secs	Solid state analog	Octal style
CIR Series		Triggered interval on or one shot	12 24 110 120 48 AC/ DC	2 Form C; DPDT	.1-60 secs 120-180 secs 180-240 secs 240-300 secs 300-480 secs 60-120 secs	Solid state analog	Octal style
CR Series		Triggered delay on release	12 24 110 48 115 AC/ DC	1 Form C; SPDT 1 Form A; SPST- normally open 1 Form B; SPST-normally closed	1-120 secs	Solid state analog	Miniature
CR10 Series		Triggered delay on release	12 24 110 120 48 AC/ DC	2 Form C; DPDT	480-600 secs 1-120 secs 120-240 secs 240-480 secs	Solid state analog	Octal style
DC10 Series		Delay-on make / delay-on operate	12 24 110 120 48 AC/ DC	2 Form C; DPDT	.1-10 secs .1-6 secs 1.8-180 secs 1-60 hrs 1-60 mins 5-300 secs 1-60 secs	solid state CMOS digital	Octal style
DCR10 Series		Triggered delay on release	12 24 110 120 48 AC/ DC	2 Form C; DPDT	.6-60 secs 1.8-180 secs 1-10 mins 1-60 hrs 1-60 mins 5-300 secs 10-100 mins	solid state CMOS digital	Octal style
DOD Series		Delay-on dropout	12 24 110 120 48 AC/ DC	2 Form C; DPDT	.1-10 secs .6-60 secs 1.2-120 secs 3-300 secs	Solid state analog	Octal style
G Series		Discontinued, no longer available. NOTE: Technical data sheets available for reference purposes only. SUGGESTED ALTERNATE: C10 SERIES
HDOD Series		Delay-on dropout	12 24 110 120 48 DC	1 Form A; SPST- normally open	1-10 mins 10-100 mins .1-1 secs 1-10 secs 10-100 secs	CMOS digita	Hockey puck
ST1 Series		Delay-on make / delay-on operate	12 24 110 120 230 36 48 AC/ DC	1 Form A; SPST- normally open	.1-10 hrs  .2-20 secs 10-1000 secs 1-100 secs	100% solid state	Hockey puck
ST1A Series		Delay-on make / delay-on operate	12 24 110 120 230 48 AC/ DC	1 Form A; SPST- normally open	.1-10 secs .2-20 secs 10-1000 secs 1-100 secs	100% solid state	Hockey puck
ST1D Series		Delay-on make / delay-on operate	12 24 110 120 48 AC/ DC	1 Form A; SPST	1-1023 secs .2-102.3 secs	CMOS digital	Hockey puck
ST2 Series		Interval on or one shot	12 24 110 120 230 48 AC/ DC	1 Form A; SPST- normally open	.1-10 hrs  .1-10 mins .1-10 secs .2-20 secs 10-1000 secs 1-100 hrs 1-100 mins 1-100 secs 10-1000 mins	solid state CMOS digital	Hockey puck
STB Series		Triggered delay on release	12 24 110 120 230 48 AC/ DC	1 Form A; normally open	.1-10 hrs  .1-10 mins .1-10 secs .2-20 secs 10-1000 secs 1-100 hrs 1-100 mins 1-100 secs 10-1000 mins	solid state CMOS digital	Hockey puck
SWDC Series		Delay-on make / delay-on operate	12 24 110 120 48 AC/ DC	2 Form C; DPDT	.1-102 secs 1-1023 secs 10-10230 secs	CMOS digital	Octal style
SWPDC Series		Delay-on make / delay-on operate	12 24 110 120 48 AC/ DC	2 Form C; DPDT	.25-160 secs	solid state CMOS digital	Octal style
SWRDC Series		Delay-on make / delay-on operate	12 24 DC	1 Form C; SPDT 2 Form C; DPDT	.1 secs - 120 mins	CMOS digital	Octal style Din rail mountable

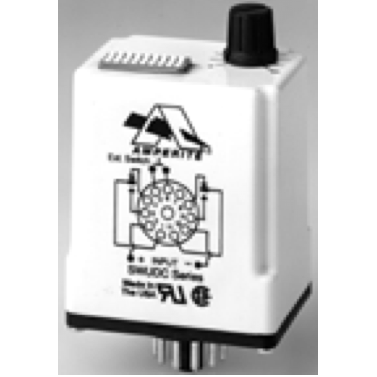

SWUDC Series		Delay-on make / delay-on operate Delay-on release Multi-function	12 24 110 120 48 AC/ DC	2 Form C; DPDT	.1-77.5 secs	solid state CMOS digital	Octal style
