22mm TuffLED™ Panel Mount Indicator

Ruggedized CNX 722 Series with built-in LED offers fast, easy installation in harsh environments

Features

Applications

designed for extreme harsh and outdoor environments
variety of connection options for fast, easy installation
built-in LED can be used with 5, 12 or 24 volt D/C circuits
fast pitch threads ease assembly, requiring only1 turn
special nut assembles by finger or with 1" hextool
direct sunlight visibility
wide angle viewable
resistant to shock and vibration
custom LEDs and lens colors available
optional bezel available in many colors
moisture sealed, IP 67/NEMA 6P rated
RoHS compliant

control cabinets
instrument panels
disinfection and sterilization environments
transportation dashboards
swich stations
safety applications
outdoor signage
aircraft and military
industrial machinery
vending and gaming machines

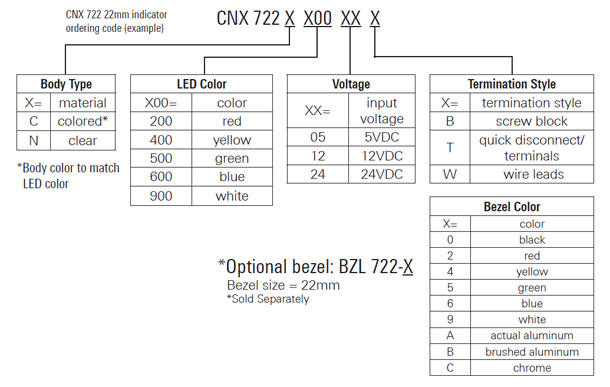

Ordering Information

New Part Numbers - Indicators

Search Thru all CNX 722 Series Indicators

New Part Numbers - Bezels

Part Number	Size	Color
BZL722-C	22 mm	Chrome Finish
BZL722-0	22 mm	Black
BZL722-2	22 mm	Red
BZL722-4	22 mm	Yellow
BZL722-5	22 mm	Green
BZL722-6	22 mm	Blue
BZL722-9	22 mm	White
BZL722-A	22 mm	Aluminum
BZL722-B	22 mm	Brushed Aluminum

Documents and Downloads

Document	File Type	File Size	Download
Datasheet	PDF	499 KB
