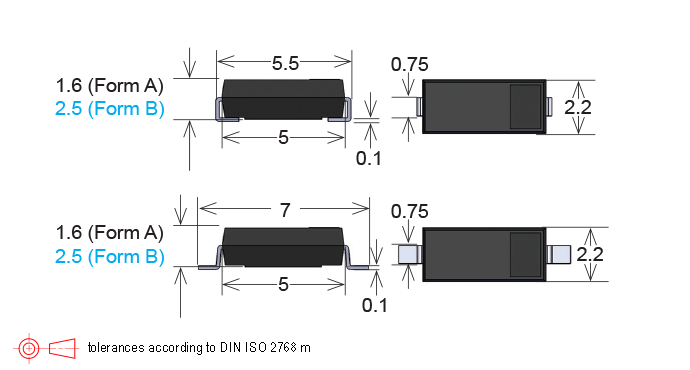

Ultraminiature surface mount (SMD) MK24 series reed sensor used in On/Off control switch, proximity, motion, position detection with optional Form B (SPST-N.C.) contact form. Supplied in tape and reel according to IEC 286/part 3. Axial or gull-wing lead designs available. UL Approval

Portable medical device, white goods, telecommunications, security, metering, sabotage switch





Contact Form	1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.)
Operating Range	5-25 AT
Rated Power Max.	3W/30VDC/0.3A



Document	File Type	File Size	Download
MK24 Series Datasheeet	PDF	316 KB
