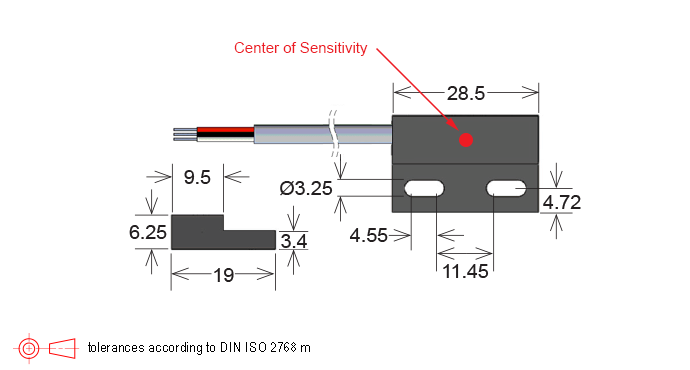

MH21 series Hall Effect Sensor are packaged in a screw fastened flange mount rectangular housing with cable terminals. MH21 hall sensor custom options include: output- switch, latch, etc., high temperature resistance, package design and much more. Also available in a micro-power version that operate on 2.5-3.5V battery voltage with only 5μA average supply current vs. the industry average of 5mA. The Standex Electronics MH21 series Hall Effect Sensor design offer solid state reliability, low power consumption, and consistent activation points over a wide temperature range in a rugged and environmentally isolated package. Notes: Add external pull-up resistor (RL) for sinking output between VCC and VOUT. Add external bypass capacitor (CBYP) close to the sensor to reduce external noise as needed.
SME Hall Effect Sensor products are ideal in limited space requirements, surface mount, speed sensor – fast response, outputs beyond on/off, linear output, programmable, latching, polarity sensitive, and much more….
