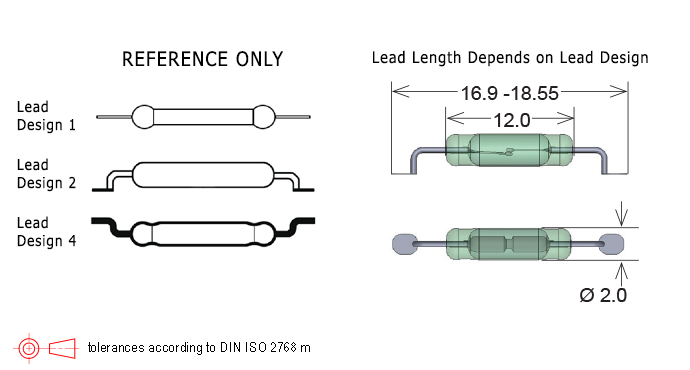

Miniature MK23-46 surface mount reed switch with glass length of 12.0mm and diameter of 2.0mm. Rated power 10 W, switching voltage 200 VDC, switching current 0.5 Amp DC. The MK23-46 surface mount reed switch is a bare glass version of our surface mount reed sensors, offering a more economic and compact design as compared to our over-molded reed sensors. Sold in Tape & Reel packing according to IEC 286/part 3 and is suitable for pick and place automation.
Used in On/Off control switch, proximity, motion, position detection in general purpose, appliance, automotive, military and aerospace, safety and security, telecommunications, test and measurement (ATE), transportation applications and much more
