The Reed Switch ORT551-1 is a miniature changeover reed switch or single pole double throw SPDT switch. This Reed Switch has a glass length of 14.0mm and diameter of 2.54mm. Rated power 3 W, Switching voltage 30 VDC, Switching current 0.2 Amp DC. normally closed (N.C.) lead has a dog leg bend.

General purpose, industrial, test and measurement (ATE)

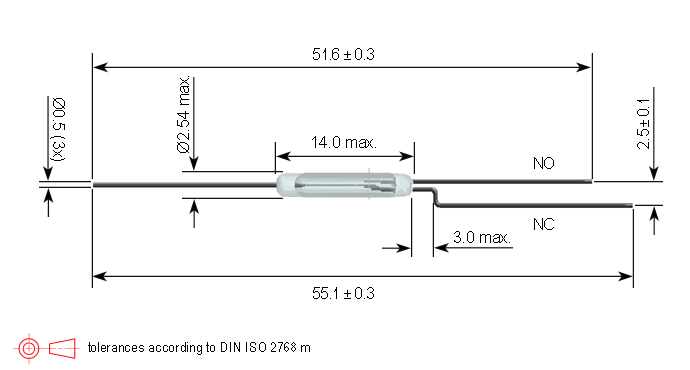

Overall Length mm (inches)	55.1 (2.169)
Glass Length Max. mm (inches)	14.0 (0.551)
Glass Dia. Max. mm (inches)	2.54 (0.100)
Lead Dia. mm (inches)	0.5 (0.019)
Contact Form	1C (SPDT) Changeover
Pull-In Range	10-30 AT
Rated Power Max.	3W/30VDC/0.2 Amp DC



Document	File Type	File Size	Download
ORT551-1 Datasheeet	PDF	16 KB
