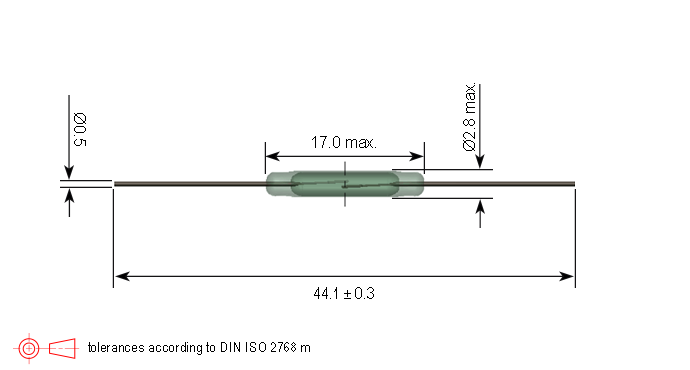

Reed Switch ORD9215 has a glass length of 17.0mm and diameter of 2.8mm. Rated power 10 W, Switching voltage 100 VDC, Switching current 0.4 Amp DC.

General purpose, household appliance, measurement equipment, telecommunications





Overall Length mm (inches)	44.1 (1.736)
Glass Length Max. mm (inches)	17.0 (0.668)
Glass Dia. Max. mm (inches)	2.8 (0.110)
Lead Dia. mm (inches)	0.5 (0.019)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	10-50 AT
Rated Power Max.	10W/100VDC/0.4 Amp DC



Document	File Type	File Size	Download
ORD9215 Datasheeet	PDF	97 KB
