Reed Switch ORD324H is a miniature reed switch with glass length of 14.0mm and diameter of 2.2mm, and a longer lead length of 56.7mm. Rated power 10 W, Switching voltage 200 VDC, Switching current 0.5 Amp DC.

General purpose, automotive, industrial

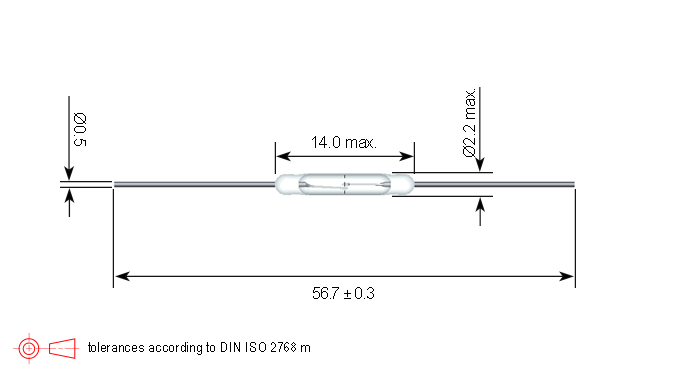

Overall Length mm (inches)	56.7 (2.232)
Glass Length Max. mm (inches)	14.0 (0.551)
Glas Dia. Max. mm (inches)	2.20 (0.086)
Lead Dia. mm (inches)	0.5 (0.019)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	10-40 AT
Rated Power Max.	10W/200VDC/0.5 Amp DC



Document	File Type	File Size	Download
ORD324H Datasheeet	PDF	731 KB
