Reed Switch ORD2211H is a high power reed switch with glass length of 16.5mm, diameter of 2.7mm, and longer lead length of 57.0mm. Rated power 50 W, Switching voltage 100 VDC, Switching current 0.5 Amp DC.

General purpose, test and measurement (ATE), high power

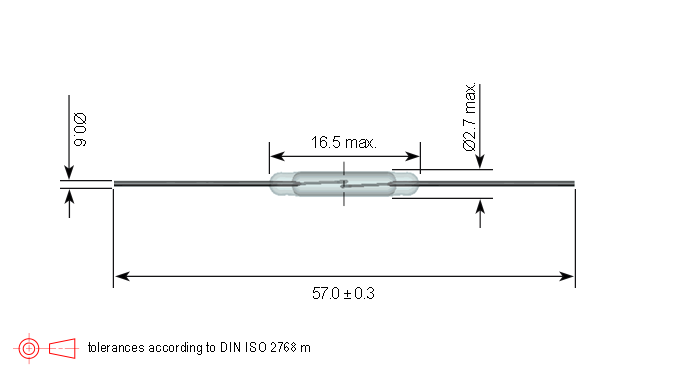

Overall Length mm (inches)	57.0 (2.244)
Glass Length Max. mm (inches)	16.5 (0.649)
Glass Dia. Max. mm (inches)	2.70 (0.106)
Lead Dia. mm (inches)	0.6 (0.023)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	20-40 AT
Rated Power Max.	50W/100VDC/0.5 Amp DC



Document	File Type	File Size	Download
ORD2211H Datasheeet	PDF	741 KB
