Reed Switch ORD2210V is a vacuum high breakdown voltage reed switch. Glass length of 21.0mm and diameter of 2.75mm. Rated power 100 W, Switching voltage 350 VDC, Switching current 1 Amp DC.

General purpose, high power, high voltage, industrial

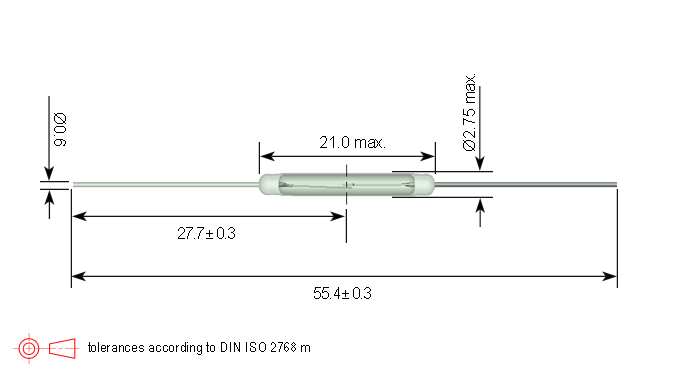

Overall Length mm (inches)	55.4 (2.181)
Glass Length Max. mm (inches)	21.0 (0.826)
Glass Dia. Max. mm (inches)	2.75 (0.108)
Lead Dia. mm (inches)	0.6 (0.023)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	20-60 AT
Rated Power Max.	100W/350VDC/1 Amp DC



Document	File Type	File Size	Download
ORD2210V Datasheeet	PDF	80 KB
