Reed Switch ORD2210 is a high power reed switch or high voltage reed switch. Glass length of 21.0mm and diameter of 2.75mm. Rated power 50 W, Switching voltage 200 VDC, Switching current 1 Amp DC.

General purpose, high power, high voltage, industrial

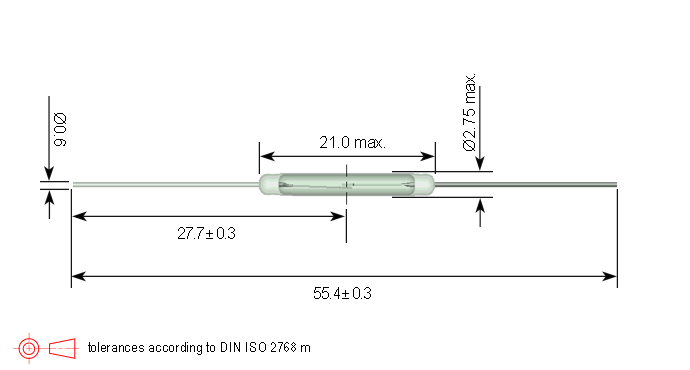

Overall Length mm (inches)	55.4 (2.181)
Glass Length Max. mm (inches)	21.0 (0.826)
Glass Dia. Max. mm (inches)	2.75 (0.108)
Lead Dia. mm (inches)	0.6 (0.023)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	15-60 AT
Rated Power Max.	50W/200VDC/1 Amp DC



Document	File Type	File Size	Download
ORD2210 Datasheeet	PDF	81 KB
