Miniature offset Reed Switch ORD221 features a glass length of 13.0mm and diameter of 2.3mm and is designed for medium-level loads <100 V. Rated power 10 W, Switching voltage 100 VDC, Switching current 0.3 Amp DC.

General purpose, automotive electronics, household appliance, measurement equipment, telecommunications

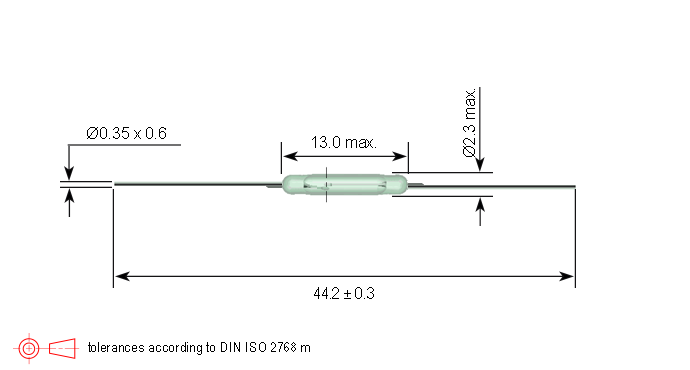

Overall Length mm (inches)	44.2 (1.740)
Glass Length Max. mm (inches)	13.0 (0.512)
Glass Dia. Max. mm (inches)	2.30 (0.090)
Lead Dia. mm (inches)	0.35 (0.014) x 0.6 (0.023)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	10-30 AT
Rated Power Max.	10W/100VDC/0.3 Amp DC



Document	File Type	File Size	Download
ORD221 Datasheeet	PDF	735 KB
