Reed Switch ORD219 features a glass length of 12.0mm and diameter of 2.0mm. Rated power 10 W, Switching voltage 100 VDC, Switching current 0.5 Amp DC.

General purpose, industrial, test and measurement (ATE)

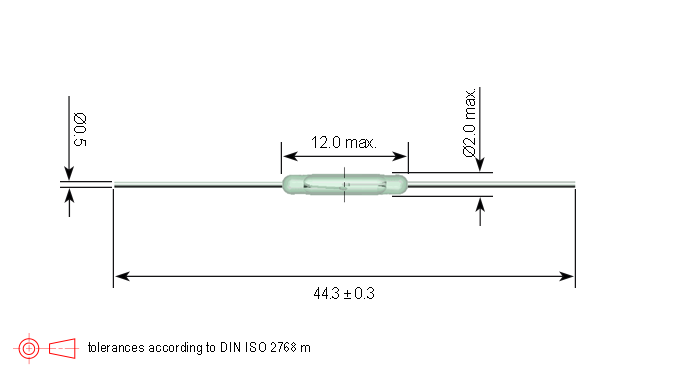

Overall Length mm (inches)	44.3 (1.744)
Glass Length Max. mm (inches)	12.0 (0.472)
Glass Dia. Max. mm (inches)	2.00 (0.078)
Lead Dia. mm (inches)	0.5 (0.019)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	10-40 AT
Rated Power Max.	10W/100VDC/0.5 Amp DC



Document	File Type	File Size	Download
ORD219 Datasheeet	PDF	82 KB
