Reed Switch ORD213 has a glass length of 7.0mm and diameter of 1.8mm. And a rated power of 1 W, switching voltage 24 VDC, and switching current 0.1 Amp DC. This ultraminiature reed switch is one of our most widely used switches. It features a close differential between the open and closure values or what is referred to as a narrow hysteresis. This is key in achieving a precise switching point as with small portable devices.

General purpose, medical equipment, test and measurement (ATE)

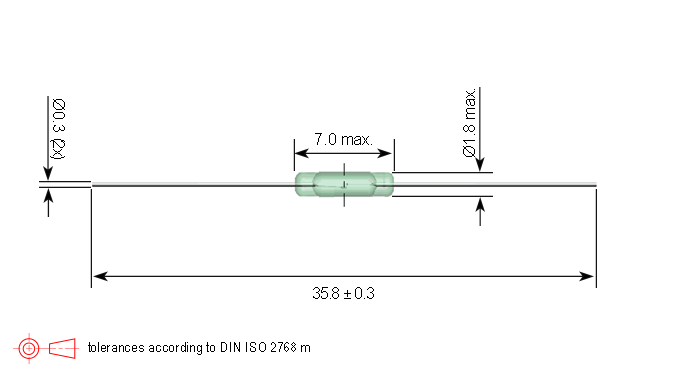

Overall Length mm (inches)	35.8 (1.409)
Glass Length Max. mm (inches)	7.0 (0.275)
Glass Dia. Max. mm (inches)	1.80 (0.070)
Lead Dia. mm (inches)	0.3 (0.011)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	10-40 AT
Rated Power Max.	1W/24VDC/0.1 Amp DC



Document	File Type	File Size	Download
Reed Switch ORD213 Datasheeet	PDF	97 KB
