Miniature Reed Switch ORD211 featuring a glass length of 10.0mm and diameter of 2.0mm. Rated power 1 W, Switching voltage 24 VDC, Switching current 0.1 Amp DC.

General purpose, automotive, test and measurement (ATE)

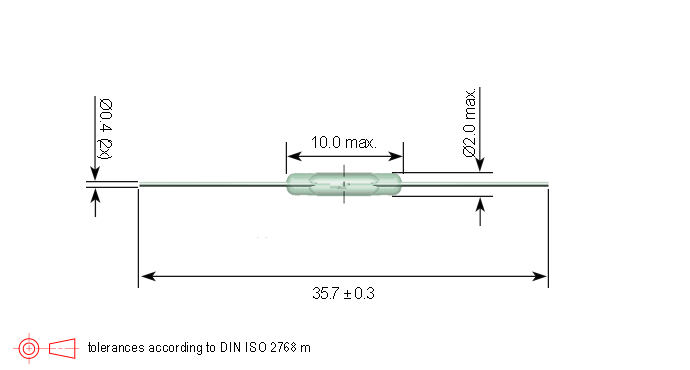

Overall Length mm (inches)	35.7 (1.405)
Glass Length Max. mm (inches)	10.0 (0.394)
Glass Dia. Max. mm (inches)	2.00 (0.078)
Lead Dia. mm (inches)	0.4 (0.015)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	10-40 AT
Rated Power Max.	1W/24VDC/0.1 Amp DC



Document	File Type	File Size	Download
ORD211 Datasheeet	PDF	91 KB
