The NL126 is a high power reed switch with glass length of 20.3mm and diameter of 2.5mm. Rated power 50 W, Switching voltage 200 VDC/150 VAC, Switching current 1.5 Amp DC/AC.

General purpose, high power/voltage, industrial

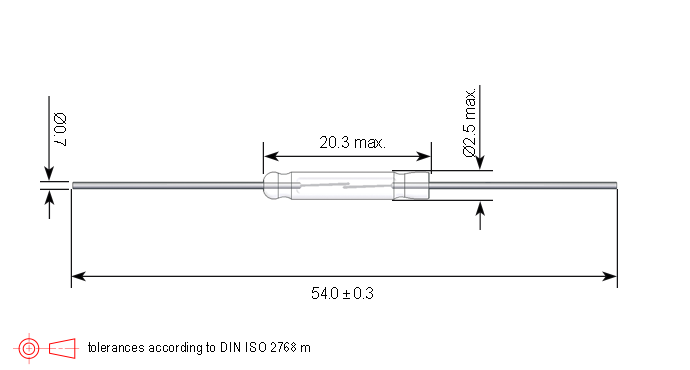

Overall Length mm (inches)	54.0 (2.125)
Glass Length Max. mm (inches)	20.3 (0.799)
Glass Dia. Max. mm (inches)	2.50 (0.098)
Lead Dia. mm (inches)	0.7 (0.027)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	20-60 AT
Rated Power Max.	50W/200VDC/150 VAC/1.5 Amp DC/AC



Document	File Type	File Size	Download
NL126 Datasheeet	PDF	97 KB
