The KSK-1A55 is a high power reed switch with glass length of 16.5mm and diameter of 2.8mm. This reed switch has a rated power 50 W, Switching voltage 100 VDC, Switching current 0.5 Amp DC.

General purpose, test and measurement (ATE), high power

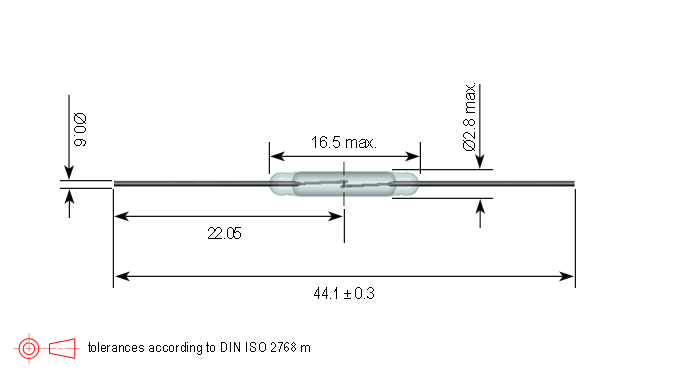

Overall Length mm (inches)	43.9 (1.728)
Glass Length Max. mm (inches)	16.5 (0.649)
Glass Dia. Max. mm (inches)	2.80 (0.110)
Lead Dia. mm (inches)	0.6 (0.023)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	15-60 AT
Rated Power Max.	50W/100VDC/0.5 Amp DC



Document	File Type	File Size	Download
KSK-1A55 Datasheeet	PDF	97 KB
