The KSK-1A52 is a high power reed switch with glass length of 21.0mm and diameter of 2.75mm. Rated power 50 W, Switching voltage 350 VDC, Switching current 0.7 Amp DC.

Automotive, test and measurement (ATE), high power, high voltage

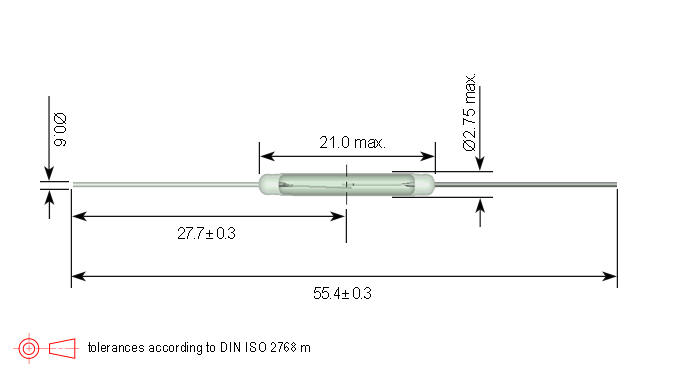

Overall Length mm (inches)	55.4 (2.181)
Glass Length Max. mm (inches)	21.0 (0.826)
Glass Dia. Max. mm (inches)	2.75 (0.108)
Lead Dia. mm (inches)	0.6 (0.023)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	15-70 AT
Rated Power Max.	50W/350VDC/0.7 Amp DC



Document	File Type	File Size	Download
KSK-1A52 Datasheeet	PDF	318 KB
