The KSK-1A33 is a high power reed switch and high voltage reed switch with high current capability. Glass length of 52.0mm and diameter of 5.4mm. Rated power 120 W, Switching voltage 250 VDC, Switching current 3 Amp DC

Automotive and construction machines and direct supply voltage/current switching, direct battery switching, direct load switching for pumps and electro-motors, high power, lamp load switches, test and measurement (ATE)

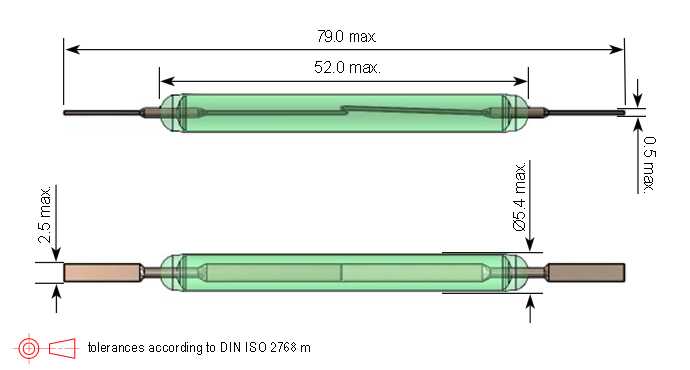

Overall Length mm (inches)	79.0 (3.110)
Glass Length Max. mm (inches)	52.0 (2.047)
Glass Dia. Max. mm (inches)	5.40 (0.212)
Lead Dia. mm (inches)	0.5 (0.019)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	80-100 AT
Rated Power Max.	120W/250VDC/3 Amp DC



Document	File Type	File Size	Download
KSK-1A33 Datasheeet	PDF	345 KB
