The KSK-1C10 is a (Form C) single pole double throw (SPDT) or changeover reed switch and high power reed switch with high current capability. Glass length of 34.3mm and diameter of 5.16mm. Rated power 100 W, Switching voltage 500 VDC, Switching current 3 Amp DC.

High voltage, industrial, test and measurement (ATE)

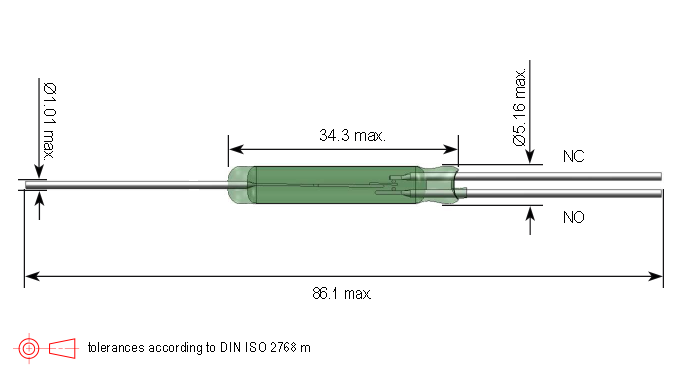

Overall Length mm (inches)	86.1 (3.390)
Glass Length Max. mm (inches)	34.3 (1.350)
Glass Dia. Max. mm (inches)	5.16 (0.203)
Lead Dia. mm (inches)	1.01 (0.040)
Contact Form	1C (SPDT) Changeover
Pull-In Range	60-80 AT
Rated Power Max.	100W/500VDC/3 Amp DC



Document	File Type	File Size	Download
KSK-1C10 Datasheeet	PDF	319 KB
