Miniature reed switch featuring a glass length of 12.7mm and diameter of 2.3mm. Rated power 10 W, Switching voltage 200 VDC, Switching current 0.5 Amp DC/AC. Most used.

Automotive, general purpose, industrial

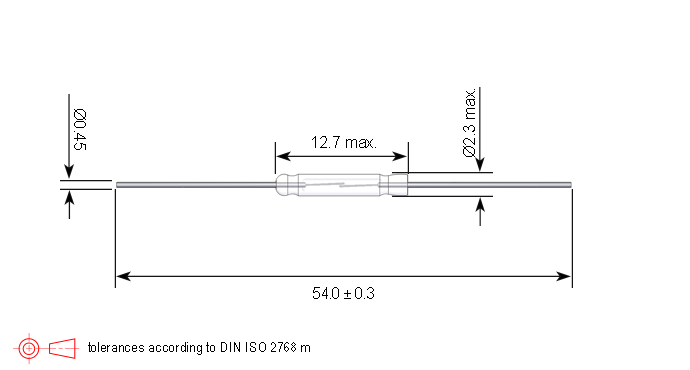

Overall Length mm (inches)	54.0 (2.125)
Glass Length Max. mm (inches)	12.7 (0.500)
Glass Dia. Max. mm (inches)	2.30 (0.090)
Lead Dia. mm (inches)	0.45 (0.017)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range /td>	10-35 AT<
Rated Power Max.	10W/200VDC/0.5 Amp DC/AC



Document	File Type	File Size	Download
KSK or SW GP501 Datasheeet	PDF	308 KB
