The PR560 is a high power reed switch and miniature reed switch with glass length of 14.2mm and diameter of 2.3mm. Rated power 10 W, Switching voltage 250 VAC/100 VDC, Switching current 1 Amp DC/AC.

Automotive, high power/voltage, industrial

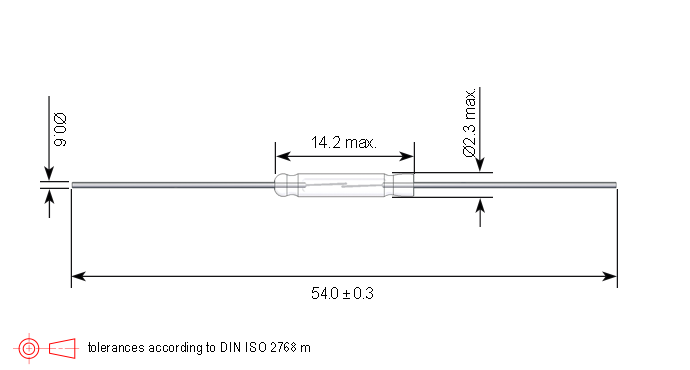

Overall Length mm (inches)	54.0 (2.125)
Glass Length Max. mm (inches)	14.2 (0.559)
Glass Dia. Max. mm (inches)	2.30 (0.090)
Lead Dia. mm (inches)	0.6 (0.023)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	20-40 AT
Rated Power Max.	10W/250 VAC/100VDC/1 Amp DC/AC



Document	File Type	File Size	Download
PR560 Datasheeet	PDF	308 KB
