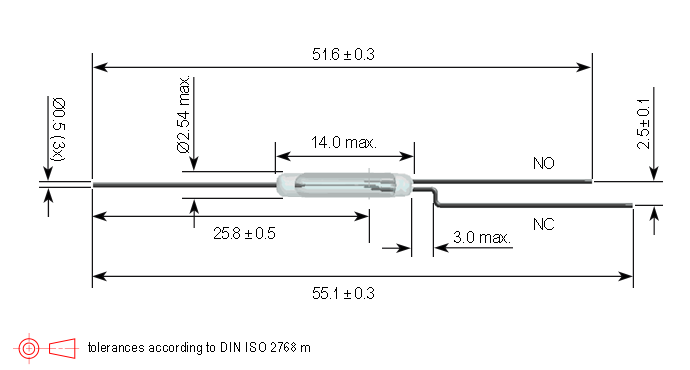

The KSK-1C90F is a miniature (Form C) changeover reed switch or single pole double throw (SPDT) reed switch. Glass length of 14.0mm and diameter of 2.54mm. Rated power 10 W, Switching voltage 175 VDC, Switching current 0.5 Amp DC. N.C. lead has a dog leg bend. UL approval.

General purpose, industrial, test and measurement (ATE)





Overall Length mm (inches)	54.5 (2.145)
Glass Length Max. mm (inches)	14.0 (0.551)
Glass Dia. Max. mm (inches)	2.54 (0.100)
Lead Dia. mm (inches)	0.5 (0.019)
Contact Form	1C (SPDT) Changeover
Pull-In Range	15-40 AT
Rated Power Max.	10W/175VDC/0.5 Amp DC



Document	File Type	File Size	Download
KSK-1C90F Datasheeet	PDF	379 KB
