Miniature reed switch with glass length of 14.0mm and diameter of 2.2mm. Rated power 10 W, Switching voltage 200 VDC, Switching current 0.5 Amp DC. Most used, UL approval.

Automotive, general purpose, industrial

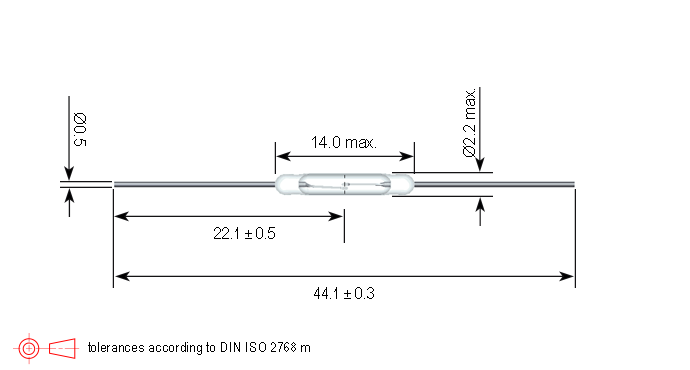

Overall Length mm (inches)	44.1 (1.736)
Glass Length Max. mm (inches)	14.0 (0.551)
Glass Dia. Max. mm (inches)	2.20 (0.086)
Lead Dia. mm (inches)	0.5 (0.019)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	10-40 AT
Rated Power Max.	10W/200VDC/0.5 Amp DC



Document	File Type	File Size	Download
KSK-1A66/3 Datasheeet	PDF	372 KB
