Miniature reed switch with glass length of 10.5mm and diameter of 2.1mm. Rated power 20 W, Switching voltage 200 VDC, Switching current 1 Amp DC. UL approval, flat leads.

General purpose, automotive, test and measurement (ATE)

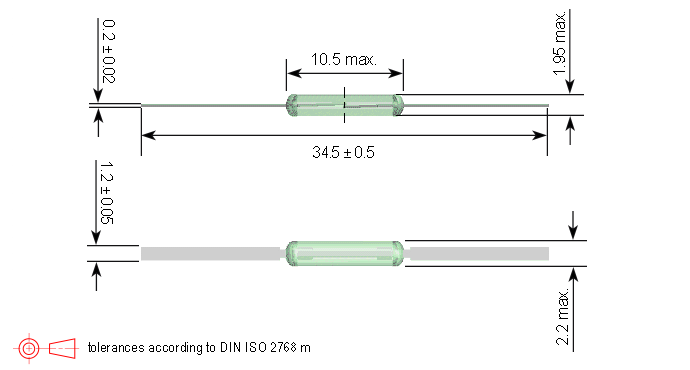

Overall Length mm (inches)	34.5 (1.358)
Glass Length Max. mm (inches)	10.5 (0.413)
Glass Dia. Max. mm (inches)	2.10 (0.082)
Lead Dia. mm (inches)	1.2 (0.047) x 0.2 (0.008)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	10-40 AT
Rated Power Max.	20W/200VDC/1 Amp DC



Document	File Type	File Size	Download
KSK-1A35 Datasheeet	PDF	377 KB
