Ultraminiature reed switch featuring a close differential and glass length of 7.0mm and diameter of 1.8mm. Rated power 10 W, Switching voltage 170 VDC, Switching current 0.5 Amp DC. Most used, UL approval.

General purpose, medical equipment, test and measurement (ATE)

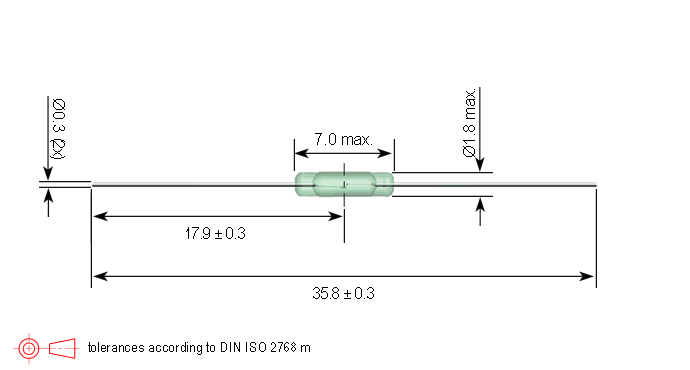

Overall Length mm (inches)	35.6 (1.401)
Glass Length Max. mm (inches)	7.0 (0.275)
Glass Dia. Max. mm (inches)	1.80 (0.070)
Lead Dia. mm (inches)	0.3 (0.011)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	10-40 AT
Rated Power Max.	10W/170VDC/0.5 Amp DC



Document	File Type	File Size	Download
KSK-1A80 Datasheeet	PDF	374 KB
