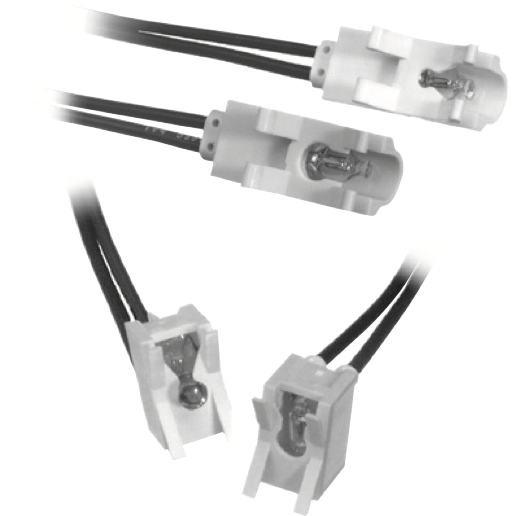

Features

• Lens mounts from front, indicator from behind panel
• Incandescent and neon illumination
• 10 Series has wire leads only
• 60 Series available with wire leads or tab terminals





Body Material	Nylon
Lens Material	Polycarbonate
Wire Gauge	Series 10 - 20 ga Series 60 - 18 ga
Wire Strip	1/2"
Panel Thickness	.030 - .780







Document	File Type	File Size	Download
Series 10, 60 Datasheet	PDF	449 KB
