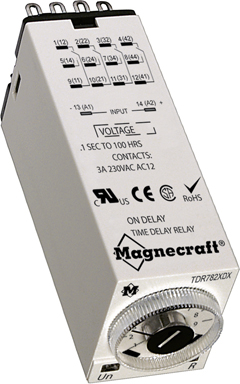

NEW PRODUCT LAUNCH - MINIATURE TIME DELAY RELAY (TDR782)

As part of our continued process to provide new products we are pleased to announce the new TDR782 miniature time delay relay – a cost effective, time delay relay in a small package.



  • On delay function – most commonly used programmable timing function for industrial relay applications.
  • Multiple time settings – allows for maximum flexibility.
  • Time adjustment dial – enables accurate timing adjustment.
  • Input & output LED indication – indicates timing status at a glance.
  • Optional accessories – increases functionality and ease of use.

New Part Numbers

Part Number Contact Configuration Contact Voltage Contact Rating
TDR782XBXA-12D
DPDT
12 VDC
5 A
TDR782XBXA-24D
DPDT
24 VDC
5 A
TDR782XBXA-24A
DPDT
24 VAC
5 A
TDR782XBXA-110A
DPDT
110 VAC
5 A
TDR782XBXA-230A
DPDT
230 VAC
5 A
TDR782XDXA-12D
4PDT
12 VDC
3 A
TDR782XDXA-24D
4PDT
24 VDC
3 A
TDR782XDXA-24A
4PDT
24 VAC
3 A
TDR782XDXA-110A
4PDT
110 VAC
3 A
TDR782XDXA-230A
4PDT
230 VAC
3 A

Documents and Downloads

Document File Type File Size Download
TDR782 Sell Sheet PDF 1.27 MB
TDR782 Spec Sheet PDF 2.03 MB
TDR782 RoHS Certificate PDF 297 KB
TDR782 NAFTA Certificate PDF 96 KB
