Unlike electromechanical relays, solid state relays are electronic switching devices and have no moving parts. The solid state relays provide reliable switching in general applications and fast switching speeds. Since there are no moving parts, the life expectancy of a solid state relay is much improved compared to electromechanical relays.

Series	Image	Description
PCS4 Series		2 Amp Solid State Relay DC Input / AC Output for 2A Current Load at 25°C Printed Circuit Board Mount Built in Snubber DC Input: 5 V, 12 V or 24 V 2,000 VAC Opto-Isolation Between Input and Output

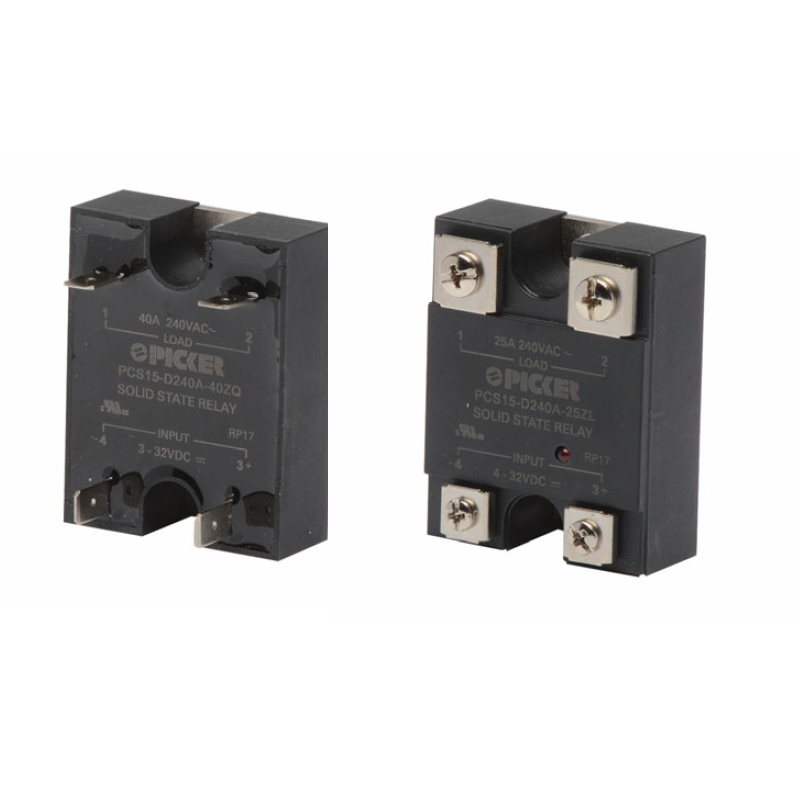

PCS15 Series		AC/DC Input Solid State Relay 10 A to 40 A Output DC Input: 3-32 VDC, or AC Input: 24, 110 or 220 VAC Panel Mount Built in Snubber Dielectric Strength of 4,000 VAC
PCS20 Series
PCS24 Series		10 Through 60 Amp Three Phase Solid State Relay High Power Three Phase Solid State Relay SCR Output (530V Version), Triac Output (440V Version) Panel Mount Wide Range DC Input Control (4-32 VDC) LED Status Indicator
PCS25 Series		10/25/40/60/80 Amp AC Output Solid State Relay 4-32 VDC or 90-250 VAC Control 440 VAC Load Voltage Option Zero Cross Built In RC Snubber Output Triac Output Design
PCS27 AC Out Series		AC Output Solid State Relay 0.1 A to 5 A Output DC Input: 3 VDC; 4 VAC; 15 VAC PCB Mount Double SCR AC Output or Triac AC Output Photoelectric Isolation
PCS27 DC Out Series		DC Output Solid State Relay 2 A or 3 A Output DC Input: 5 VDC; 12 VAC; 24 VAC PCB Mount Built in Snubber Photoelectric Isolation
PCS28 Series		Dual Solid State Relay Dual Solid State Two Independently Controlled SCR Output Relays Screw Terminal Version Available Panel Mount Built in Snubber
PCS32 AC Out Series		AC Output Solid State Relay Small Dimension for High Packing Density PCB Assembly or Socket Mount 2,500 VRMS Opto-Isolation Between Input and Output TTL and CMOS compatible For Interface Application Between PLC and External Loads
PCS32 DC Out Series		DC Output Solid State Relay Small Dimension for High Packing Density PCB Assembly or Socket Mount 2,500 VRMS Opto-Isolation Between Input and Output TTL and CMOS compatible Pin Compatible with Standard Package EMR
PCS32 100mA DC Series
PCS33 Series		Solid State Relay—MOSFET DC Voltage Output Load Current: 7 to 100 A, MOSFET Output Load Output Range: 0-500 VDC DC Input: 3-32 VDC Panel Mount Dielectric Strength of 2,500 VAC
PCS34 AC In Series		AC Input Solid State Relay High Power, Load Currents from 25 to 125 Amps Back to Back SCR Design Output Dielectric Strength of 4,000 VAC Zero Crossing Panel Mount
PCS34 DC In Series		DC Input Solid State Relay High Power Solid State Relay SCR Output Load Currents from 10 to 125 Amps Dielectric Strength of 4,000 VAC Panel Mount
PCS35 Series		10/25/40/60/80 Amp AC Output Three Phase Solid State Relay Three Phase Output SSR 4-32 VDC or 90-250 VAC Control 440 VAC Load Voltage Option Zero Cross Built In RC Snubber Output
PCS41 Series		AC Output Solid State Relay/Output Module 3 Amp, 4 Amp and 5 Amp Rating @ 30° C Compatible with AC Type I/O Modules 4,000 Volt Dielectric Strength Back to Back SCR or Triac Output Optional RC Snubber
PCS45 Series		10/15/20/25/30/40 AC Output Solid State Relay W/ Integrated Heatsink 4-32 VDC or 90-250 VAC Control 24-440 VAC Load Voltage Zero Cross Built In RC Snubber Output Triac Output Design
PCS53 Series		DC Input / AC Output Compact Solid State Relay 10 A, 15 A, 20 A or 25 A Output Compact Package 1.520” x 1.126” (38.6mm x 28.6mm) Footprint DC Input: 3-32 VDC Panel Mount Built in RC Snubber Standard
PCS55 Series		10/20/30/40 AC Output Solid State Relay/Output Module DC or AC Control Back to Back SCR Output Design LED Status Indicator Photoelectric Isolation Built in RC Snubber Circuit
