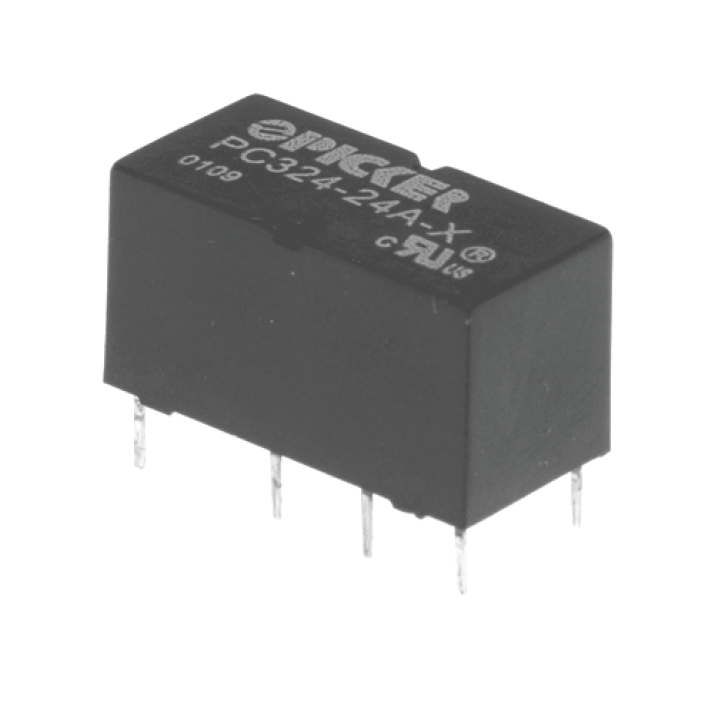

Features:



• Subminiature Design
• Bifurcated Crossbar Contacts
• 0.300” 16 Pin DIL Package
• Meets FCC part 68 Voltage Surge

Characteristics

Insulation Resistance	100MΩ min. at 500 VDC
Dielectric Strength	1000V rms, between contacts 1500V rms, between coil & contacts
Power Consumption	.40W, .55W
Terminal Strength	5N
Solderability	260°C 5 s ± 0.5 s
Operating Temperature	-40ºC to 85ºC
Storage Temperature	-40ºC to 155ºC
Shock Resistance	100 m/s2 11 ms
Vibration Resistance	10-40 Hz double amplitude 1.5mm
Weight	4.5g
