Features:



• Subminiature Design
• Bifurcated Crossbar Contacts
• 0.300” 16 Pin DIL Package
• Contact Capacity from 1 mA to 1 A
• Meets FCC part 68 Voltage Surge
• Class “B” Insulation Standard
• Three Coil Sensitivities Available
• RoHS Compliant:

Characteristics

Insulation Resistance		1,000 MΩ min, at 500 VDC
Dielectric Strength		1,000 VAC, 1 min, Between Open Contacts 1,000 VAC, 1 min, Between Coil and Contacts 1,000 VAC, 1 min, Between Contacts Poles
Power Consumption		150 mW, 200 mW, 450 mW
Terminal Strength		5N
Solderability		260ºC for 5 seconds
Operating Temperature		- 40°C ~ 90°C (-40° F ~ 194° F) (- 40°C ~ 80°C for 0.3 W , 0.45 W Coil)
Storage Temperature		- 40°C ~ 90°C (-40° F ~ 194° F) (- 40°C ~ 80°C for 0.3 W , 0.45 W Coil)
Shock Resistance	Functional	100 m/s2 11 ms
	Survival	1,000 m/s2 6 ms
Vibration Resistance	Functional	10 Hz - 55 Hz Double Amplitude 1.5 mm
	Survival	10 Hz - 55 Hz Double Amplitude 5 mm
Weight		4.5 gr

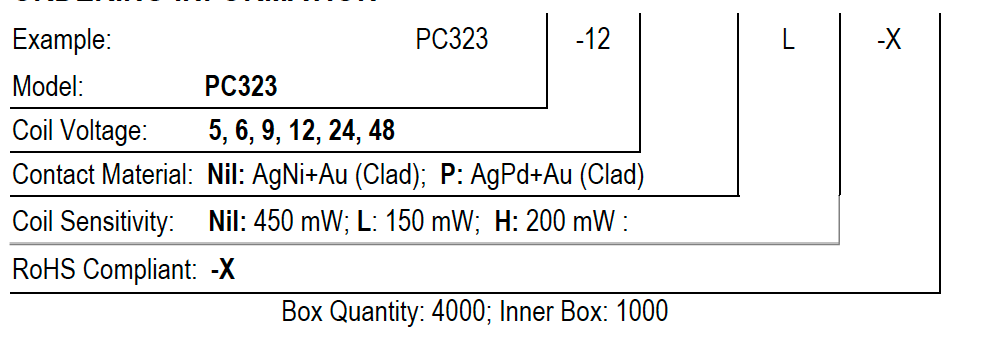

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PC323 Series Datesheet	PDF	345 KB
