Features:



• Bifurcated Crossbar Contacts
• Meets FCC part 68 Voltage Surge
• Small Size and Light Weight
• PC Board Mounting

Characteristics

Insulation Resistance	1,000 MΩ min. at 500 VDC
Dielectric Strength	500 VAC, 50 Hz, between contactS 1000 VAC, 50 Hz, between coil & contacts
Power Consumption	.20 W
Terminal Strength	5N
Solderability	260°C 5 s ± 0.5 s
Operating Temperature	-40ºC to 85ºC
Storage Temperature	-40ºC to 155ºC
Shock Resistance	100 m/s2 11 ms
Vibration Resistance	10 Hz - 40 Hz double amplitude 1.5mm
Weight	4.5g

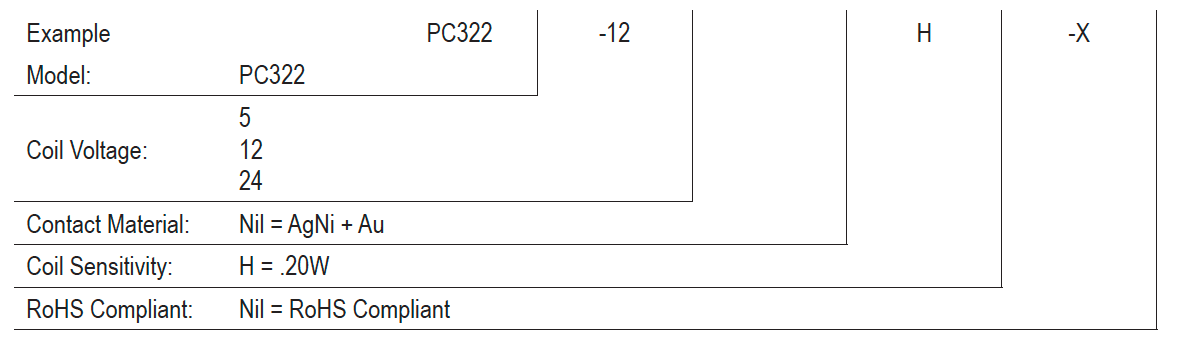

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PC322 Series Datesheet	PDF	189 KB
