Features:

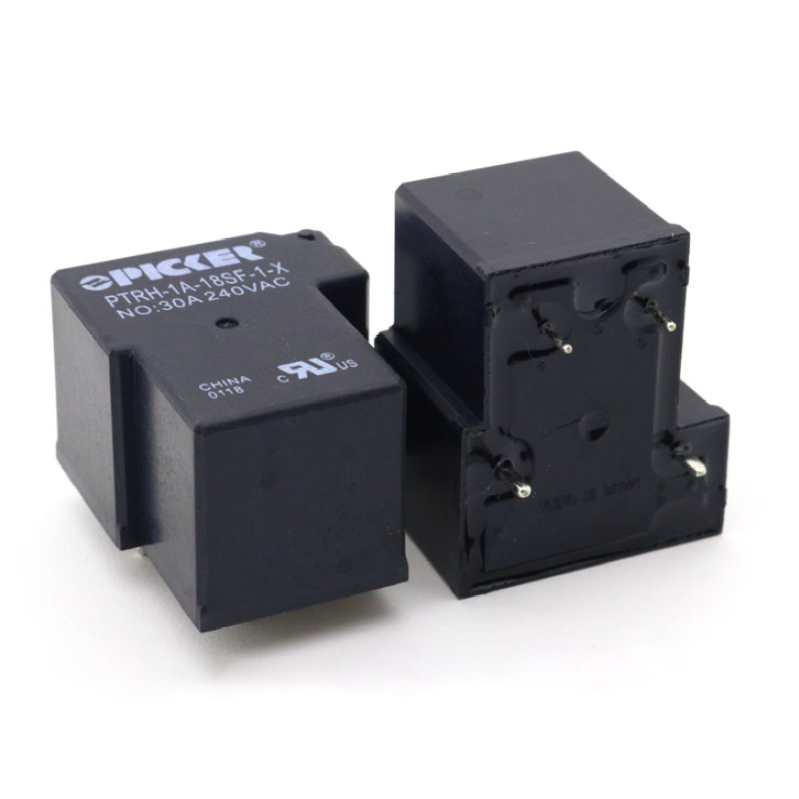

• Popular Power PCB Relay Footprint - T90
• 30 Amp 250 VAC General Purpose UL Rating
• 2 HP 250 VAC Rating
• UL Class F Insulation Available
• Meets UL 508 and UL 873 Spacing with Pin 6 Omitted
• Epoxy Sealed, Immersion Cleanable
• RoHS Compliant

Detail Specs

Operate Time	Less than 15 ms
Release Time	Less than 10 ms
Insulation Resistance	1,000 MΩ min, at 500 VDC, 50% RH
Dielectric Strength	50 Hz 2,500 V 1 Min Between Coil and Contacts 4,000 V without Pin 6 50 Hz 1,500 V 1 min. Between Contacts
Shock Resistance	200 m/s, 11 ms
Vibration Resistance	10 - 55 Hz Double Amplitude
Power Consumption	0.9 W Standard, 0.6 W & 1.1 W Optional
Terminal Strength	10N
Solderability	260 ºC for 5 seconds
Operating Temperature Range	- 40°C to 100°C Class B
Operating Temperature Range	- 40°C to 125°C Class F
Relative Humidity	85% (at 40°C)
Weight	30 grams, 27 grams Open Frame
Material Compliant To	EU RoHS V2, EU REACH V3

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PTRH Series Datesheet	PDF	5.5 MB
