Features:



• 10 A Continuous Contact Capacity
• 1 Form A (SPST-NO) & 1 Form C (SPDT (B-M)) Contact Forms
• Smallest 10 Amp Relay
• Class “F” Insulation Standard
• Sensitive Version Available
• 3.5 KV Dielectric Between Coil and Contacts
• Sealed, Immersion Cleanable
• RoHS Compliant
• See PC837 for 10 A @ 250 VAC Version

Detail Specs

Operate Time	8 ms Max
Release Time	5 ms Max
Insulation Resistance	1,000 MΩ min. at 500 VDC
Shock Resistance	100 m/s2, 11ms,
Terminal Strength	10 N
Power Consumption	Standard 450 mW, Sensitive 200 mW
Dielectric Strength	1,000 V, 50 Hz Between Contacts 2,500 V, 50 Hz Between Contact and Coil
Vibration Resistance	10 Hz - 55 Hz DA 1.5 mm
Solderability	260°C for 5 Seconds
Operating Temperature	-40 to 105ºC
Relative Humidity	95% (at 35°C)
Weight	6 grams

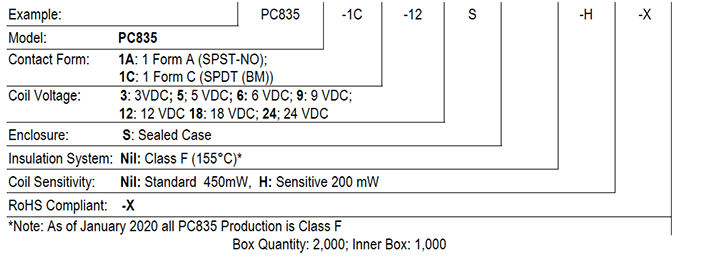

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PC835 Series Datesheet	PDF	504 KB
