Features:



• ¼ Inch Male Quick Connect Terminals
• Up to 40 Amp Switch Capacity
• Up to 2 Horsepower Rating
• Compatible with SC740 Din Rail Socket
• Top or Side Flanged Case or PC Mounting
• AC Coils up to 240VAC or DC Coils up to 110VDC

Characteristics

Insulation Resistance	500 MΩ min. at 500 VDC
Dielectric Strength	1500 Vrms, between contacts 2500 Vrms, between coil & contacts
Power Consumption	DC Coil : 2.5W; AC Coil : 5.5VA
Terminal Strength	aaaa
Operating Temperature	-40ºC to 85ºC
Storage Temperature	-40ºC to 85ºC
Shock Resistance	10g functional
Vibration Resistance	2mm double amplitude 10~55Hz
Weight	130g

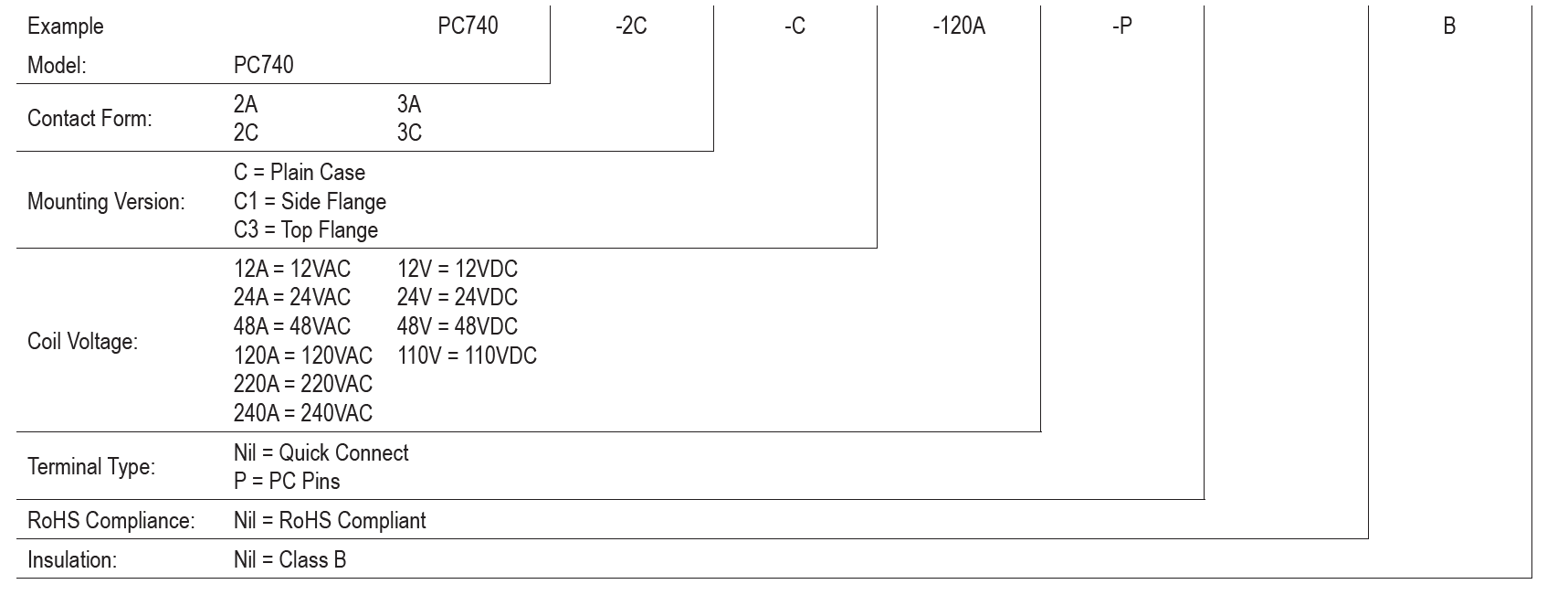

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PC740 Series Datesheet	PDF	829 KB
