Features:



• 20 A at 125 VAC and 16 A at 277 VAC Contact Rating
• 1 HP at 125 VAC and 250 VAC
• TV8 Rated at 125 VAC
• Class “B” Insulation Standard
• Maximum Switching Power 560 W, 4450 VA
• Popular “Sugar Cube” Footprint
• Sealed, Immersion Cleanable
• Lead Free and RoHS Compliant

Detail Specs

Operate Time	Less than 10 ms
Release Time	Less than 5 ms
Insulation Resistance	1,000 megaohms min @ 500 VDC, 50% RH
Dielectric Strength	3,000 Vrms, 1 min. between coil and contacts 1,000 Vrms, 1 min. between open contacts
Shock Resistance	10 g, 11 ms, functional; 100 g, destructive
Vibration Resistance	DA 1.5 mm, 10 - 55 Hz
Power Consumption	0.36 W & 0.45 W
Terminal Strength	10N
Solderability	260°C for 5 seconds
Operating Temperature Class F	-40 to 105°C
Operating Temperature Class B	-40 to 85°C
Storage Temperature	-40°C to 155°C
Relative Humidity	85% at 40°C
Weight	10 grams

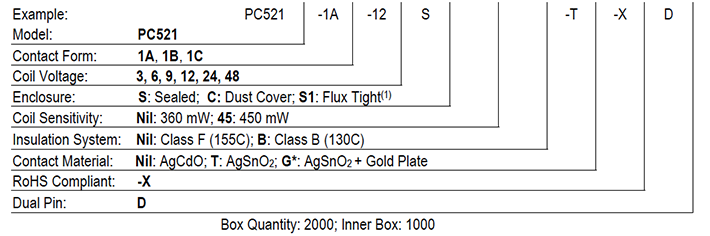

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PC521 Series Datesheet	PDF	278 KB
