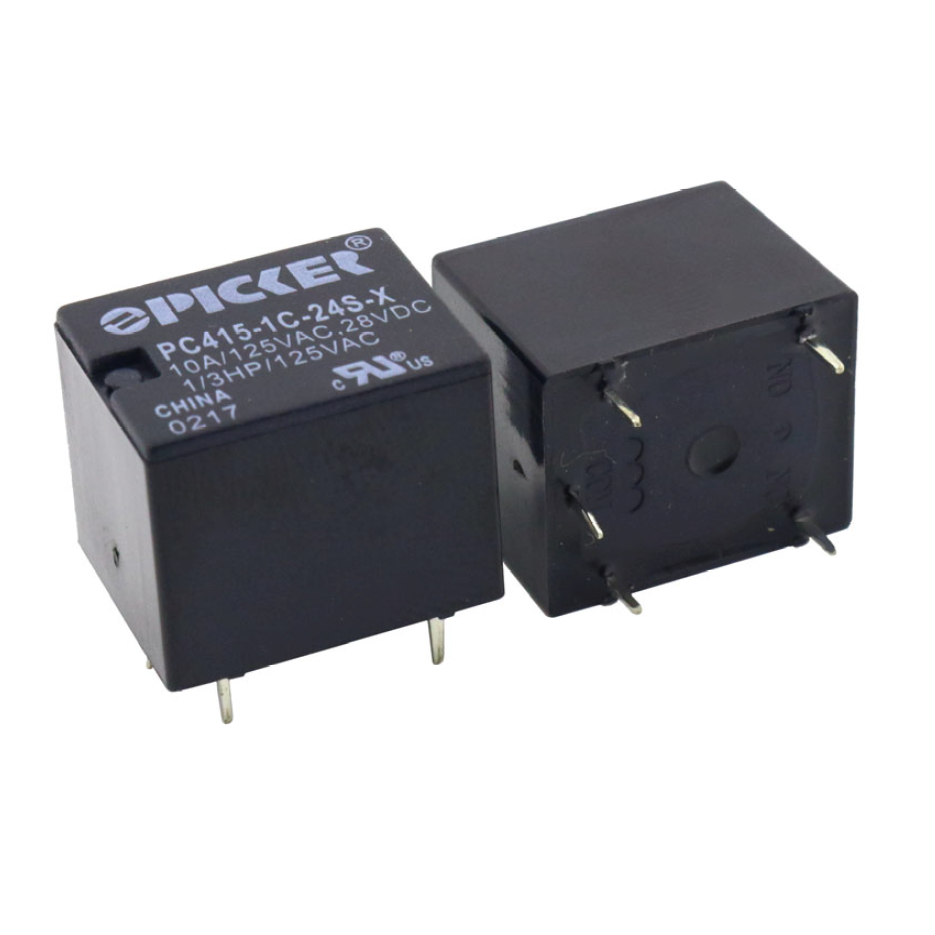

Features:



• 12 Amp 277 VAC 100,000 Cycle @ 105°C UL Rating
• Designed for High Temperature Environments
• 105°C Operating Temperature
• Low Coil Power
• IEC60335-1 Compliance Version Option
• Popular “Sugar Cube” Footprint
• Lead Free and RoHS Compliant
• Production Line Fully Automated
• 10 Amp Version - See PC420

Detail Specs

Insulation Resistance	250 megohms min, @ 500 VDC
Dielectric Strength	1,500 Vrms, 1 min. between coil and contacts 750 Vrms, 1 min. between open contacts
Shock Resistance	100 m/s2, 11 ms
Vibration Resistance	DA 1.5 mm, 10 - 55 Hz
Terminal Strength	5N
Solderability	260 ºC for 5 seconds
Ambient Temperature	-55 to 85 ºC
Relative Humidity	85% (at 40°C)
Weight	9.5 grams

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PC422 Series Datesheet	PDF	349 KB
