Features:



• Up to 10 Amp at 250 VAC / 30 VDC Continuous Contact Capacity
• Miniature Size 28.6 x 12.6 x 10.1 mm
• 5 KV Dielectric Strength Between Coil and Contacts
• 8 mm Creepage Distance Between Coil and Contacts
• Low Profile Design .49 in. Tall
• Meets UL 873 Spacing
• 85°C Operating Temperature
• RoHS Compliant
• Applications: IoT (Internet of Things)

Detail Specs

Operate Time	< 10 ms
Release Time	< 10 ms
Insulation Resistance	1,000 MΩ min, at 500 VDC
Dielectric Strength	5,000 V, 50 Hz. between contact and coil 1,000 V, 50 Hz between open contacts
Shock Resistance	Functional 98 m/s2, Destructive 980 m/s2
Power Consumption	aaa250 mW to activateaa
Vibration Resistance	10 - 55 Hz, DA 1.65 mm,
Terminal Strength	10N
Solderability	260 ºC for 5 seconds
Ambient Temperature Range	-40°C to 85°C
Relative Humidity	85% (at 40°C)
Weight	8 g

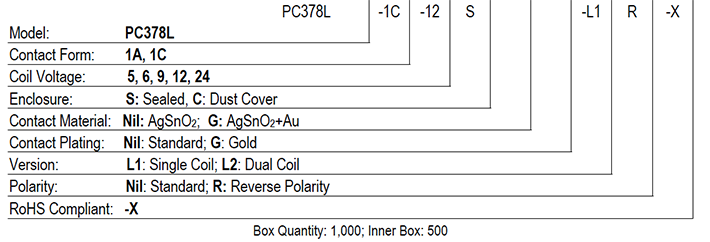

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PC378L Series Datesheet	PDF	1.0 MB
