Features:



• 2, 3 or 4 Pole Contact Forms
• AC & DC Coils Available
• Available as Plug-In or PC Pins
• Available with Gold Plated Contacts
• Available with Top Mounting Flange
• Available with Push-To-Test Button
• Available Compatible with SC118 Series Socket

Characteristics

Insulation Resistance	100MΩ min. at 500 VDC
Dielectric Strength	1500V rms, between coil & contacts 1000V rms, between open contacts 1000V rms, between poles
Power Consumption	0.9W, 1.2VA
Terminal Strength	8N QC; 4N PCB
Operating Temperature	-40ºC to 85ºC
Storage Temperature	-40ºC to 155ºC
Shock Resistance	100 m/s2 11 ms
Vibration Resistance	10-55 Hz double amplitude 1.5mm
Weight	37g

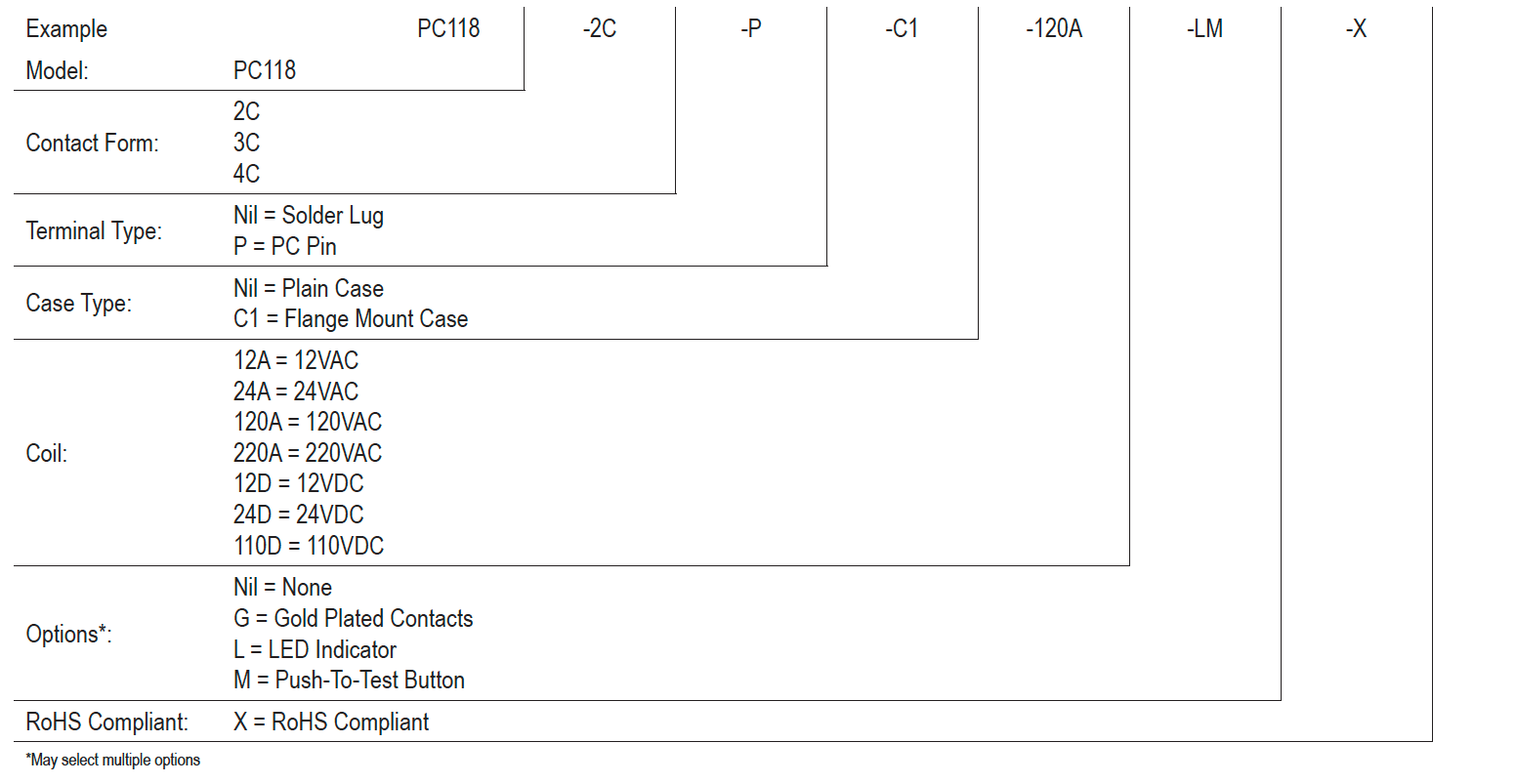

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PC118 Series Datesheet	PDF	308 KB
