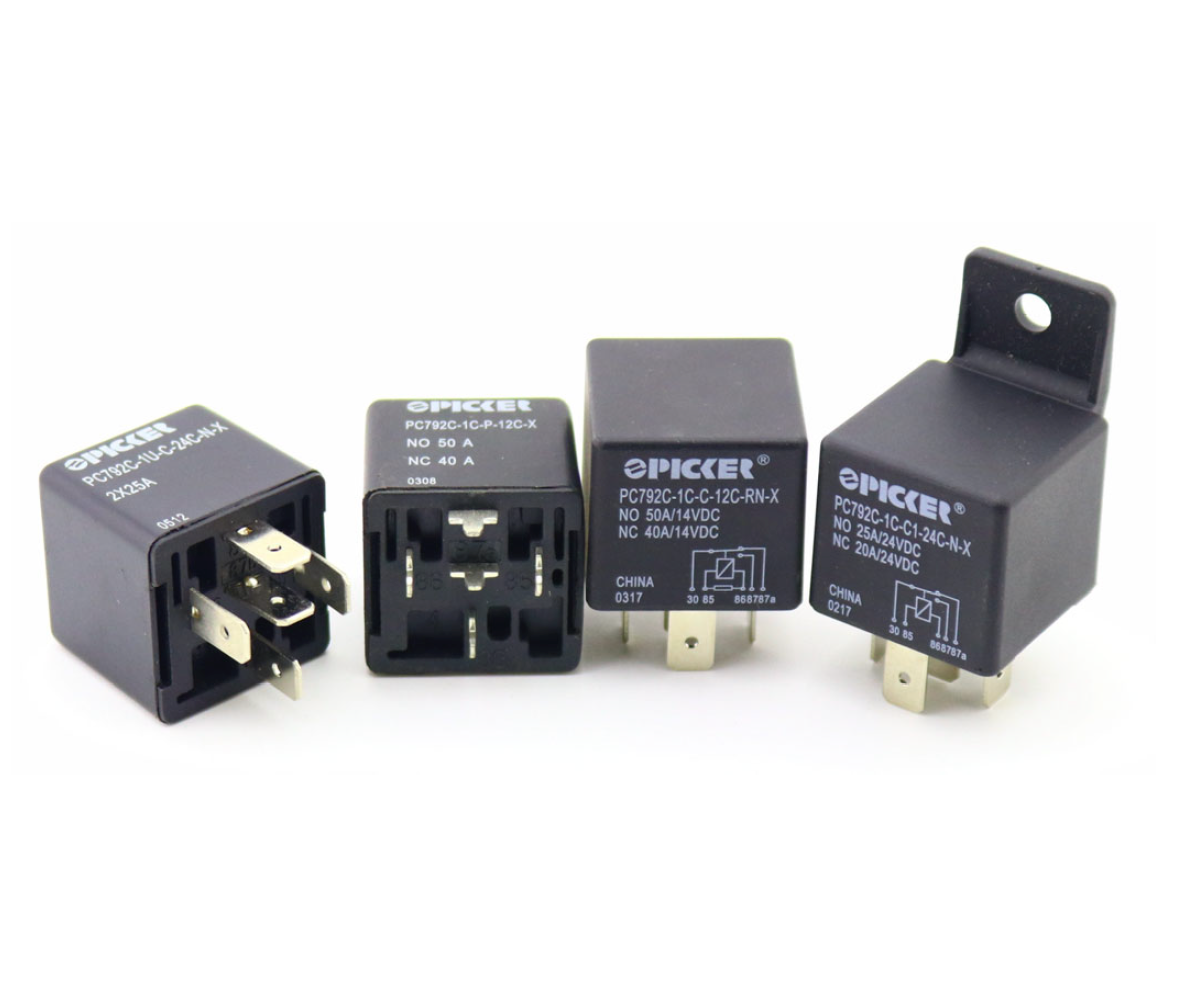

Features:



• Most Popular Automotive Relay Footprint
• 1A, 1C and 1U Contact Forms Available
• Contact Switching Capacity up to 150 Amps
• 50 Amps Continuous Carrying Current
• Up to 1250C Operating Temperature
• Internal Diodes or Resistors Available
• Plain Case, Plastic Bracket, Metal Bracket or PC Pins
• Compatible with Socket SC792
• Lead Free and RoHS Compliant
• Fully Automated Assembly

Characteristics

Operate Time	7 msec Typical
Release Time	2 msec Typical
Insulation Resistance	100 MΩ Min @ 500VDC
Dielectric Strength	50 Hz 500VRMS 1 min. Between Contact and Coil 50 Hz 500VRMS 1 min. Between Contacts
Power Consumption	1.8 W Standard, 2.3 W & 2.6 W Optional
Terminal Strength	8 N, 4N (PC Type)
Operating Temperature	-40°C to 125°C
Storage Temperature	-40°C to 155°C
Shock Resistance	147 m/s² 11 msec
Vibration Resistance	10-40 Hz Double Amplitude 1.5mm
Weight	46 grams, 48 grams w/Metal Bracket

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PC792C Series Datesheet	PDF	532 KB
