Features:



• 75 Amp at 14 VDC Continuous Carry Current at 25°C
• Max Switching Current of 150 Amps
• Bifurcated Contacts Standard
  • Tungsten Contacts Connect First Switching the Load
  • Oversized Silver Tin Contacts Carry the Load
• 12 and 24 VDC Versions
• -40°C to 125°C Operating Temperature
• Copper Stud Construction for Efficient Heat Dissipation
• Class H Insulation System (180°C)
• RoHS Compliant

Characteristics

Operate Time	7 msec Typical
Release Time	5 msec Typical
Insulation Resistance	100 MΩ Min @ 500VDC
Dielectric Strength	50 Hz 750 V, 1 Min Between Contact and Coil 50 Hz 500 V, 1 Min Between Contacts
Power Consumption	2.88 W
Terminal Strength	100 N
Operating Temperature	-40°C to 125°C
Storage Temperature	-40°C to 155°C
Shock Resistance	147 m/s² 11 msec
Vibration Resistance	10-40 Hz Double Amplitude 1.5mm
Weight	50 grams

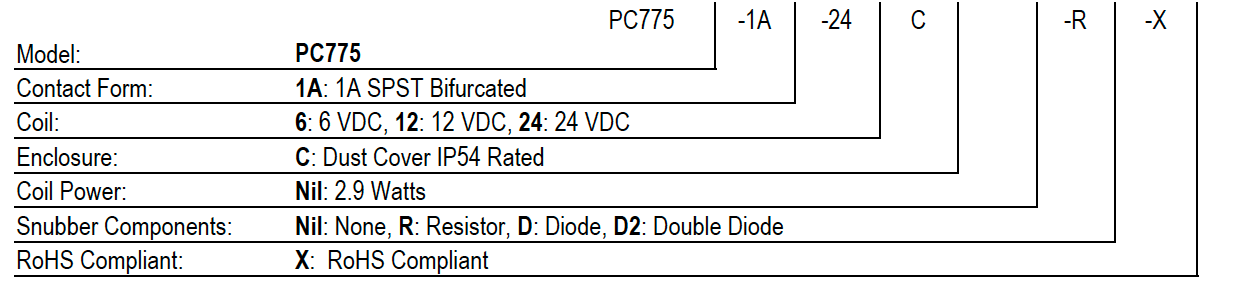

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PC775 Series Datesheet	PDF	629 KB
