Features:



• Popular Maxi ISO Automotive Relay Footprint
• 1A and 1C Contact Forms Available
• Contact Switching Capacity up to 450 Amps
• 150 Amps Continuous Carrying Current
• Up to 1250C Operating Temperature
• Internal Diodes or Resistors Available
• Plain Case, Metal Mounting Bracket and PC Pins
• Sockets Available
• Lead Free and RoHS Compliant

Characteristics

Operate Time	7 msec Typical
Release Time	2 msec Typical
Insulation Resistance	100 MΩ Min @ 500VDC
Dielectric Strength	50 Hz 1000 V Between Contact and Coil 50 Hz 750 V Between Contacts
Power Consumption	2.9 W
Terminal Strength	30 N
Operating Temperature	-40°C to 125°C
Storage Temperature	-40°C to 155°C
Shock Resistance	147 m/s² 11 msec
Vibration Resistance	10-40 Hz Double Amplitude 1.5mm
Weight	60 grams

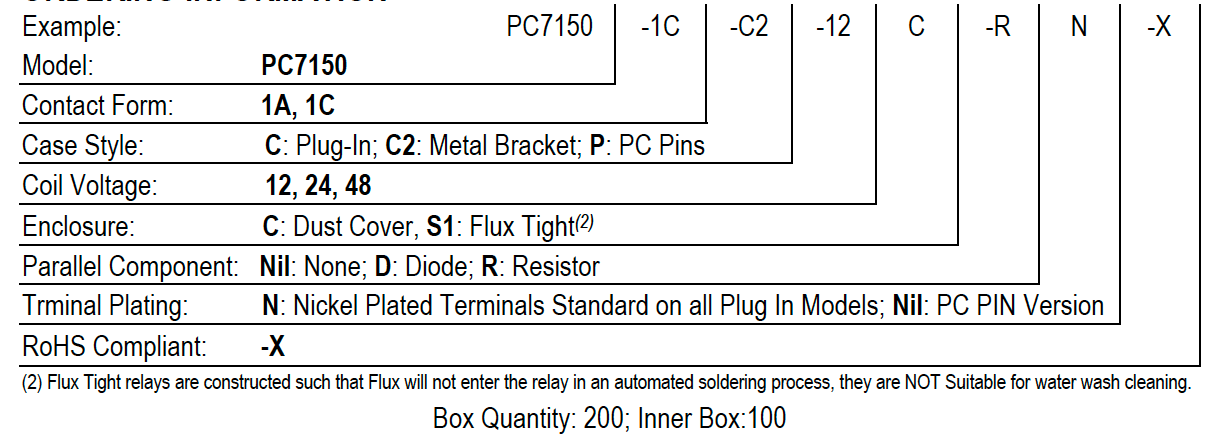

Ordering Information
