Ordering Information

Model Element Type Shape
D6T-1A-01 1x1
D6T-1A-02
D6T-8L-09/09H 1x8
D6T-44L-06/06H 4x4
D6T-32L-01A 32x32



Ratings / Characteristics

Ratings

Item D6T-1A-01 D6T-1A-02 D6T-8L-09 D6T-8L-09H D6T-44L-06 D6T-44L-06H D6T-32L-01A
Power supply voltage 4.5 to 5.5 VDC
Storage temperature range* −20 to 80°C −40 to 80°C −20 to 80°C −10 to 60°C −20 to 80°C
Operating temperature range* 0 to 60°C 0 to 60°C 0 to 50°C −10 to 70°C
Storage humidity range* 95% max. 85% max. 95% max.
Operating humidity range* 20% to 95% 20% to 85% 20% to 95%

* with no icing or condensation

Characteristics

Item D6T-1A-01 D6T-1A-02 D6T-8L-09 D6T-8L-09H D6T-44L-06 D6T-44L-06H D6T-32L-01A
View angle*1 X Direction 58.0° 26.5° 54.5° 44.2° 90°
Y Direction 5.5° 45.7°
Object temperature
output accuracy*²		 Accuracy 1 ±1.5°C max. / Measurement conditions: Vcc = 5.0 V
(1) Tx = 25°C, Ta = 25°C (2) Tx = 45°C, Ta = 25°C (3) Tx = 45°C, Ta = 45°C		 Within ±3.0°C
Measurement conditions: Vcc = 5.0 V
Tx = 25°C,
Ta = 25°C
Central 16x16-
pixel area
Current consumption 3.5 mA typical 5 mA typical 19 mA typical


Functions

Item D6T-1A-01 D6T-1A-02 D6T-8L-09 D6T-8L-09H D6T-44L-06 D6T-44L-06H D6T-32L-01A
Object temperature detection range*2 5 to 50°C −40 to 80°C 5 to 50°C 5 to 200°C 5 to 50°C 5 to 200°C 0 to 200°C
Ambient temperature detection range*2 5 to 45°C 5 to 45°C 0 to 80°C
Output specifications Digital values that correspond to the object temperature (Tx) and reference temperature
(Ta) are output from a serial communications port.
Output form
(Object temperature detection)		 Binary code (10 times the detected temperature (°C)) Binary code
(5 times the detected temperature (°C))		 Binary code
(10 times the detected temperature (°C))
Output form
(Reference temperature inside the sensor)		 Binary code (10 times the detected temperature (°C))
Communications form I2C compliant
Temperature resolution (NETD)*3 0.02°C
(Data update cycle 100 msec)		 0.06°C
(Data update cycle 100 msec)		 0.03°C
(Data update cycle 250 msec)		 0.06°C
(Data update cycle 300 msec)		 0.33°C *4
(Data update cycle 200 msec)

*1 Refer to Field of View Characteristics.
*2 Refer to Object Temperature Detection Range.
*3 Reference data
*4 Taken to be the average value of the central 4 pixels.


Object Temperature Detection Range

Connections

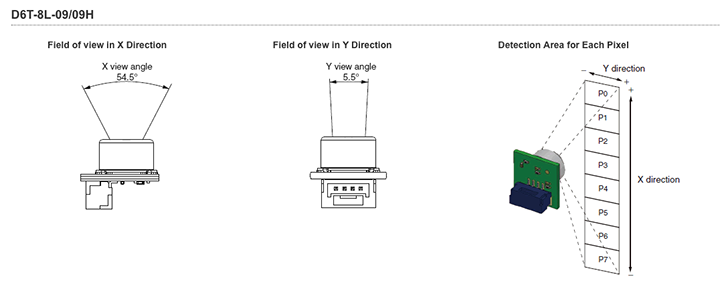

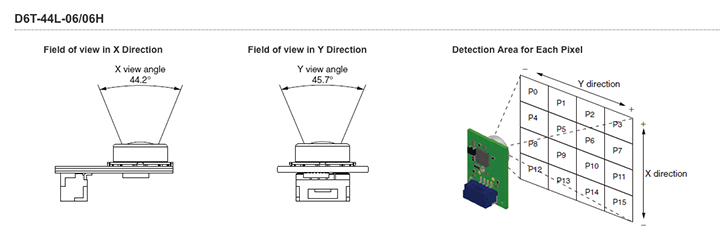

Field of View Characteristic

* Definition of view angle: Using the maximum Sensor output as a reference, the angular range where the Sensor output is 50% or higher when the angle of the Sensor is changed is defined as the view angle.

Downloads

Document File Type File Size Download
D6T Catalog PDF 4.8 MB
